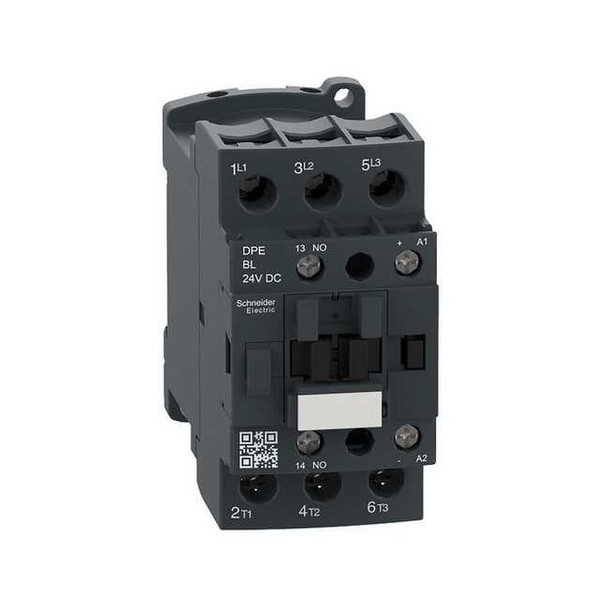

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp DPE32BL

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC standards. It has a 24 V DC coil and uses screw clamp terminals. With 3 normally open main contacts and 1 NO auxiliary contact, this device is suitable for use with motor control and resistive loads when used within specified parameters. It is part of the TeSys Easy family. - Coil voltage: 24 V DC - Poles and contacts: 3 poles; 3 normally open main contacts; 1 NO auxiliary contact - Reversing: Non-Reversing - Electrical connection: Screw Clamp Terminals - Series/Frame: TeSys Easy (IEC) - Rated voltage: 690 V AC / 300 V DC - Maximum voltage rating: 690 V AC - IP rating: IP20 - Enclosure ratings: 3R; 4 - Mounting: DIN Rail, Plate - Mounts On: Plate, Rail - Dimensions (H x W x D): 3.35 in x 1.77 in x 3.62 in - Net weight: 0.37 kg - Frequency: 50/60 Hz - Rated making capacity: 140 A (AC Signalling); 250 A (DC Signalling); 450 A @ 440 V (Power Circuit) - Rated insulation voltage: 600/690 V - Overvoltage category: CAT III - Includes auxiliary contacts: Yes - Signalling circuit: 25 to 400 Hz; Switching voltage 17 V; Switching current 5 mA - Maximum operating temperature: as specified by manufacturer guidelines - Frame: TeSys Easy - Number of poles: 3
