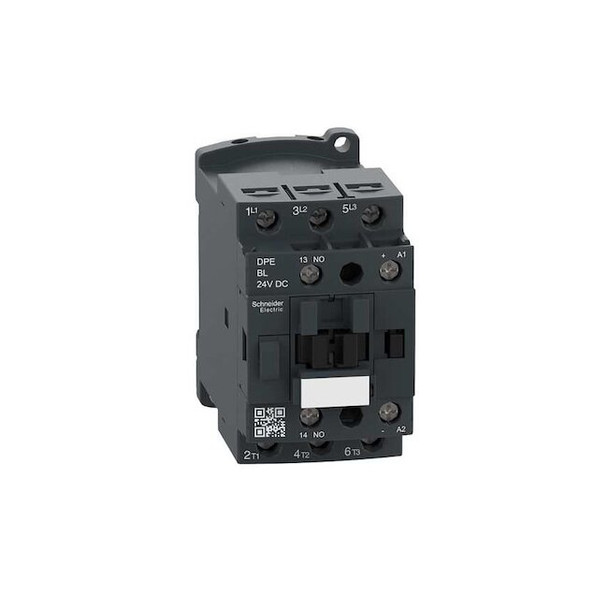

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp DPE25BL

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a motor control and resistive load device, designed for use in industrial settings. It operates with a coil voltage of 24V DC and features an auxiliary contact form of 1NO. The contactor has a depth of 3.39 inches and uses screw clamp terminals for electrical connection. With an operational frequency of 50/60 Hz, it can handle full load amps both inductive and resistive at 25 A. This magnetic contactor belongs to the TeSys frame/series/class/code. Key Features: - Control Circuit Voltage Limits: Drop-Out: 0.1 to 0.3 Uc (at 70°C); Operational: 0.8 to 1.25 Uc (at 60°C), - Electrical Durability: Has been tested for up to one million cycles under specific conditions. - Enclosure NEMA Rating: Rated as both a type "3R" and "4". - Maximum Operating Temperature: Tested for operation at temperatures up to140 Degrees F. - Mounting Style: Compatible with DIN Rail or Plate mounting styles. - Number of Poles: Contains three poles for electrical circuitry. - Reversing Capability: Non-reversing design - Standards Compliance: Complies with CSA, EN, IEC, UL standards among others
