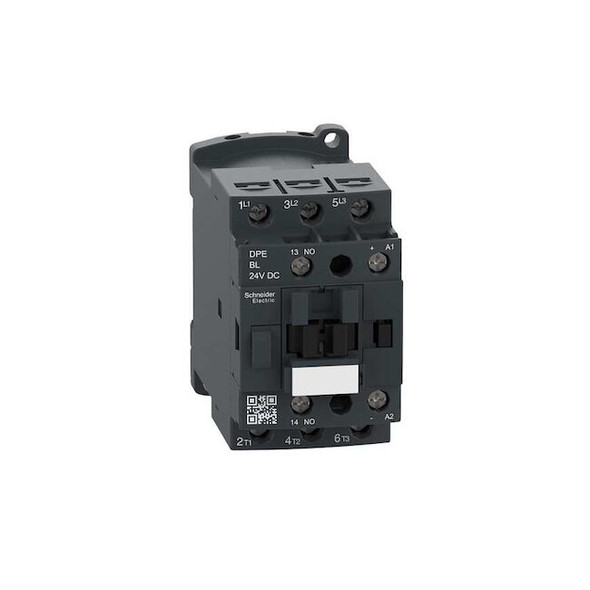

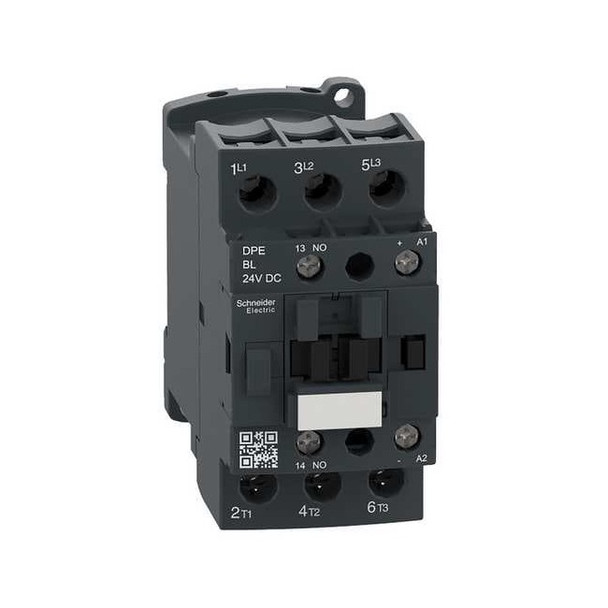

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp DPE38BL

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, 24 V DC coil device with screw clamp terminals. It features 3 main normally open contacts and 1 NO auxiliary contact (1NO), and is part of the TeSys Easy family for IEC-standard control of motor control and resistive-load circuits. It is rated for operation within the specified voltage ranges and designed for use within standard electrical parameters. Mounting options are compatible with common installation practices. Key features - Poles/contacts: 3 poles; 3 main normally open contacts; 1 auxiliary contact (1NO) - Coil voltage: 24 V DC - Reversing: Non-Reversing - Series/Frame: TeSys Easy (TeSys) - Electrical ratings: Rated for operation within the specified voltage ranges; 50/60 Hz - Enclosure/mounting: IP20; No enclosure; DIN Rail, Plate mounting - Connection: Screw Clamp terminals - Durability: Mechanical 10 Mcycles; Electrical 1,000,000 (AC-3); 600,000 (AC-1) - Load/current: Full Load Amps 38 A (inductive and resistive) - Dimensions/weight: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.375 kg - Signalling/operating: Electrical specifications provided are based on standardized testing conditions and do not imply guaranteed performance under all circumstances. - Standards: CSA, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1 - Special features: Without Built-In Suppressor Module - Application: Motor Control, Resistive Load
