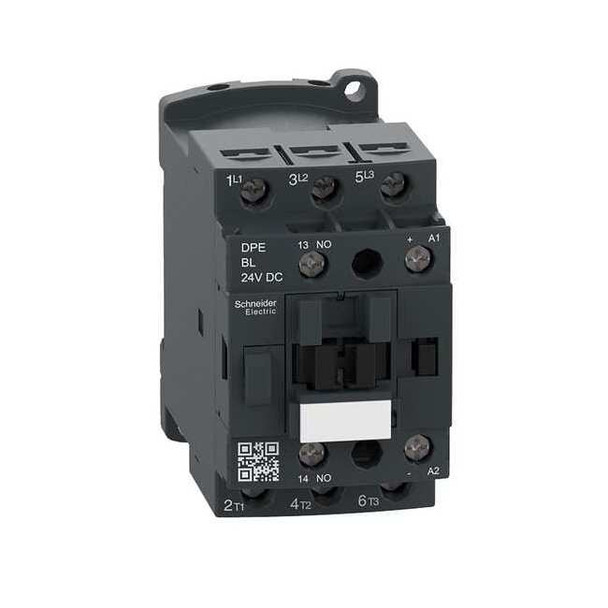

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp DPE09BL

Schneider Electric IEC Magnetic Contactor, 3-pole, 24 V DC coil, non-reversing, 1 normally open auxiliary contact, mounted with screw clamp terminals. This IEC-style magnetic contactor is rated for operation within the specified voltage and current ranges in motor control and resistive load applications. It features a TeSys Easy frame and is suitable for installation in control panels with standard dimensions; complies with relevant standards. - Poles: 3; Main Contacts: 3 NO; Auxiliary Contacts: 1 NO; Coil Voltage: 24 V DC; Reversing: Non-Reversing - Frame: TeSys Easy; Control: 50/60 Hz; Electrical Connection: Screw Clamp Terminals - Mounting: DIN Rail, Plate; Mounts On: Plate, Rail; Enclosure: IP20; NEMA Rating: 3R; 4 - Maximum Voltage: rated for operation up to 690 V AC / 300 V DC within specified conditions - Rated Voltage: rated for use at voltages up to these levels under specified conditions - Rated Making Capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling) → rated making capacity at specified voltages within the product's electrical ratings - Max. Operating Watts: 2.2 kW at 220–230 V AC; 4 kW at 380–400 V AC; 4 kW at 415–440 V AC; 5.5 kW at 500–690 V AC → capable of operating within the specified wattage ranges when used according to manufacturer instructions - Full Load Amps: Inductive 9 A; Resistive 9 A → rated for continuous operation at these current levels under normal conditions - Frequency: 50/60 Hz; Impedance: 2.5 mOhm - Impulse Withstand Voltage: 6 kV → withstands impulse voltages up to this level as per testing standards; does not imply safety guarantee during actual use; Includes Auxiliary Contacts: Yes; Non-Overlap Time: 1.5 ms - Operating Times (Closing/Opening): 65.45–88.55 ms / 20–30 ms → typical switching times based on design specifications; actual performance may vary depending on application conditions - Shock Resistance: 15 G (Closed); 10 G (Open); Vibration Resistance: 4 G (Closed);
