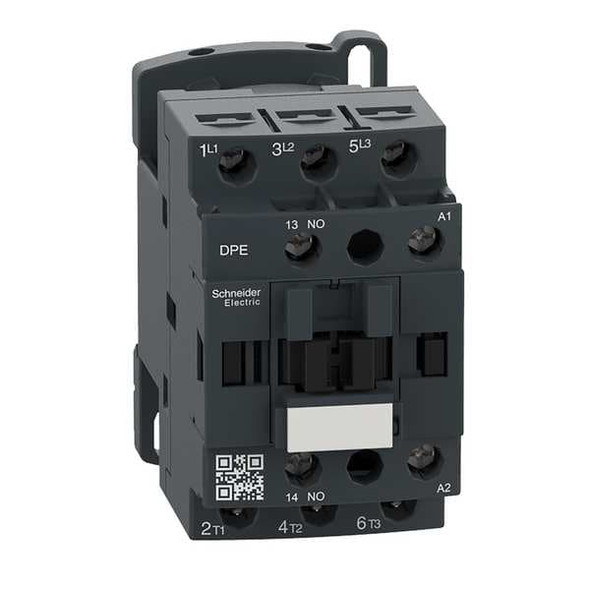

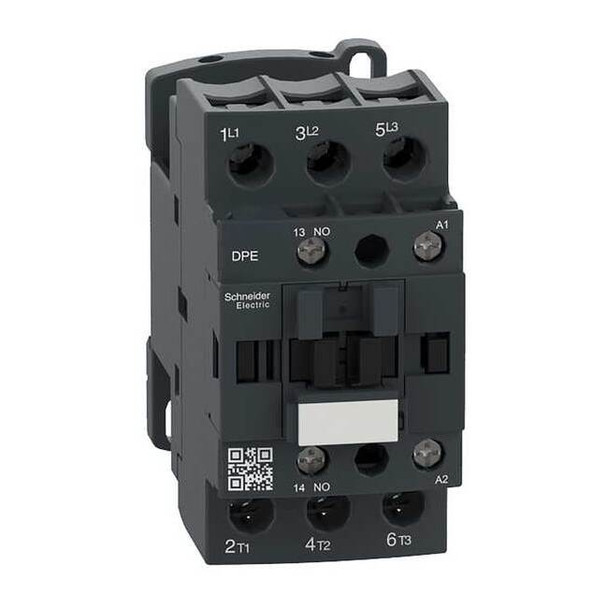

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp DPE38G7

The Schneider Electric IEC Magnetic Contactor is a TeSys Easy, non-reversing, 3-pole magnetic switch rated for use in electrical control systems within specified parameters. It operates with a 120 V AC coil; includes 3 main contacts and 1 auxiliary contact as specified. The device is suitable for use with motor loads and resistive loads within specified ratings and manufactured in accordance with applicable IEC standards. - Coil Voltage: 120 V AC - Auxiliary Contacts: 1 NO - Auxiliary Contact Form: 1 NO - Contactor Style: IEC - Reversing: No - Reversing Capability: Non-Reversing - Poles: 3 - Main Contacts (Normally Open): 3 - Includes Auxiliary Contacts: Yes - Frame / Series: TeSys Easy - Frequency: 50/60 Hz - Max. Voltage Rating: 690 V AC - Rated Voltage: 690 V AC, 300 V DC - Rated Insulation Volts: 600/690 V - IP Rating: IP20 - Enclosure: No Enclosure - Enclosure Rating: 3R; 4 - Net Weight: 0.375 kg - Depth: 3.62 in - Height: 3.35 in - Width: 1.77 in - Electrical Connection: Screw Clamp - Electrical Operating Durability: 1,000,000; 600,000 - Mechanical Durability: 10 Mcycles - Operating Time (Closing/Opening): 12-22 ms / 4-19 ms - Holding VA: 7.5 VA (60 Hz, 20°C); 7 VA (50 Hz, 20°C) - Inrush VA: 70 VA - Rated Making Capacity: 140 A (AC Signalling); 250 A (DC Signalling); 550 A @ 440 V (Power) - Maximum Operating Temperature: 140°F - Max. Temperature: 850°C - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1 - Shock Resistance: 15 G (Closed); 10 G (Open) - Vibration Resistance: 4 G (Closed); 2 G (Open) - Signalling Circuit Frequency: 25 to 400 Hz - Impulse Withstand Voltage: 6 kV - Signalling Circuit: 5 mA switching current; 17 V switching voltage - Terminal Connection Type: Screw Clamp - Tightening Torque: 1.7 Nm (Control); 2.5 Nm (Power) - Standards/Series Mention: TeSys Easy; TeSys - Environmental Attributes: Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3
