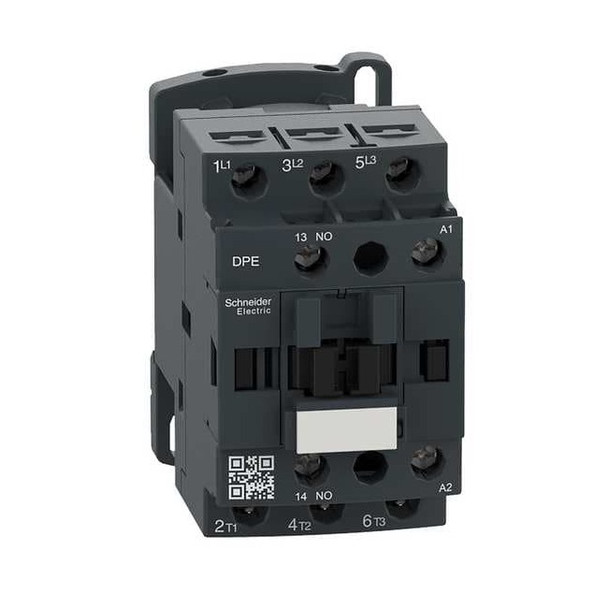

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp DPE12G7

The IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified load types and conditions. It is rated for operation with a 120 V AC coil within specified parameters and is part of the TeSys Easy family, built to IEC standards for modular control panels. - Coil voltage: 120 V AC - Poles and main contacts: 3 poles; 3 normally open main contacts - Auxiliary contacts: 1 auxiliary normally open (1NO); Includes auxiliary contacts: Yes - Reversing: Non-Reversing - Contactor style/series: IEC; TeSys Easy - Rated voltage and insulation: rated for use at voltages up to 690 V AC, 300 V DC; rated insulation voltage up to 600/690 V (within applicable standards) - Enclosure and protection: conforms to specified enclosure ratings and ingress protection levels as designated - Dimensions and weight: Depth 3.39 in; Height 3.03 in; Width 1.77 in; Net weight 0.32 kg - Durability: tested for durability under standard testing procedures but does not guarantee specific lifespan in all conditions - Frequency and switching: rated for operation within these frequency ranges and electrical parameters as specified - Power and performance: rated for loads up to these wattage and horsepower levels under normal operating conditions - Rated making/breaking: capable of handling currents up to these capacities when used according to specifications - Electrical characteristics: meets the specified electrical characteristics when operated within recommended parameters but does not imply guaranteed performance beyond those limits - Protection and standards: complies with relevant standards related to overvoltage categories and minimum switching requirements but does not guarantee performance outside standard test conditions or intended use cases - Other: Fuse Amps 10 A (Signalling Circuit); 25 A (Type 1 Power Circuit); 20 A (Type 2 Power Circuit); Environmental attributes Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3; Mounting: D
