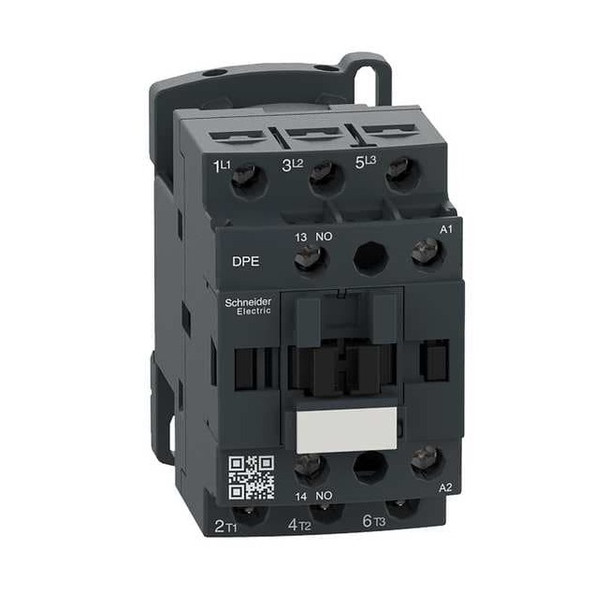

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp DPE25G7

The Schneider Electric IEC Magnetic Contactor is a TeSys Easy, IEC-style three-pole magnetic switch designed for power control in electrical systems. It features a 120 V AC coil, is non-reversing, and includes 1 normally open auxiliary contact. The device uses screw clamp terminals and is suited for motor control and resistive load applications, rated for operation at voltages up to 690 V AC within the specified frequency range. Key features - Poles and contacts: 3 poles; 3 normally open main contacts; 0 normally closed main contacts; auxiliary contact 1 NO (Includes auxiliary contacts: Yes) - Coil and control: Coil voltage 120 V AC; Reversing: Non-Reversing - Electrical ratings: Rated voltage up to 690 V AC; Rated insulation 600/690 V; Full Load Amps 25 A (resistive); 25 A (inductive) - Making capacity: 140 A (AC Signalling), 250 A (DC Signalling), 300 A @ 440 V (Power Circuit) - Connection and mounting: Screw Clamp terminals; Mounting: DIN Rail, Plate; Mounts on Plate, Rail; IP20; No Enclosure - Physical size and weight: Height 3.03 in; Width 1.77 in; Depth 3.39 in; Net weight 0.33 kg - Durability: Electrical durability tested according to applicable standards; actual lifespan may vary based on usage conditions - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1 - Additional specs: Impedance 2.5 mΩ; Impulse withstand voltage 6 kV; Signalling frequency 25–400 Hz; Signalling current 5 mA; Switching voltage (signalling circuit) up to approximately 17 V; Special features include without built-in suppressor module and overvoltage category III - Environmental and design notes: Max temperature 85°C; Series: TeSys Easy
