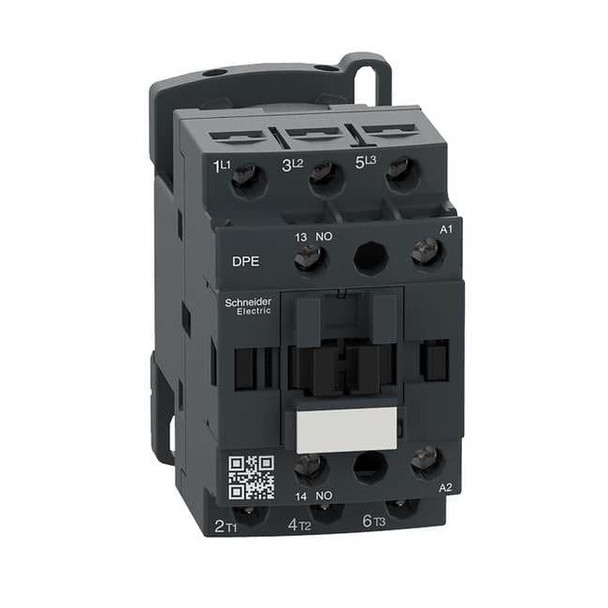

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp DPE18G7

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 120 V AC coil and 1 normally open auxiliary contact (1NO). It uses screw clamp terminals and is rated for use with motor control and resistive loads within specified parameters. The device is part of the TeSys family and is rated for operation at 50/60 Hz within the specified voltage range up to 690 V AC. Main contacts total 3 NO, complemented by 1 NO auxiliary contact; does not include reversing functionality. - Coil voltage: 120 V AC - Poles/Main Contacts: 3 poles; 3 NO main contacts; Auxiliary contact: 1 NO - Reversing: Non-Reversing - Terminals: Screw Clamp - Enclosure: IP20; Enclosure ratings are as specified; no additional enclosure features implied - Series: TeSys - Frequency: 50/60 Hz - Maximum/Insulation Voltage: 690 V AC; Rated Insulation: 600/690 V - Full Load Amps: Inductive 18 A; Resistive 18 A - Rated Making Capacity: Rated making capacity based on standard testing conditions - Rated Breaking Capacity: Rated breaking capacity under specified test conditions - Embedded Surge Suppressor: does not include an embedded surge suppressor - Dimensions/Weight: Depth 3.39 in; Height 3.03 in; Width 1.77 in; Net weight 0.325 kg - Mounting: compatible with mounting on DIN rail or plate according to installation instructions - Mechanical/Electrical Durability: tested durability within standardized cycles under controlled conditions - Operating Time/Non-Overlap: operating times are based on typical performance specifications under test conditions - Hold VA: power consumption during holding is within the rated values at specified frequencies and temperatures - Impulse/Signal: signal characteristics are as per manufacturer specifications for signalling circuits only - Fuses: fuse ratings are provided as per product design specifications, subject to proper application guidelines - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL
