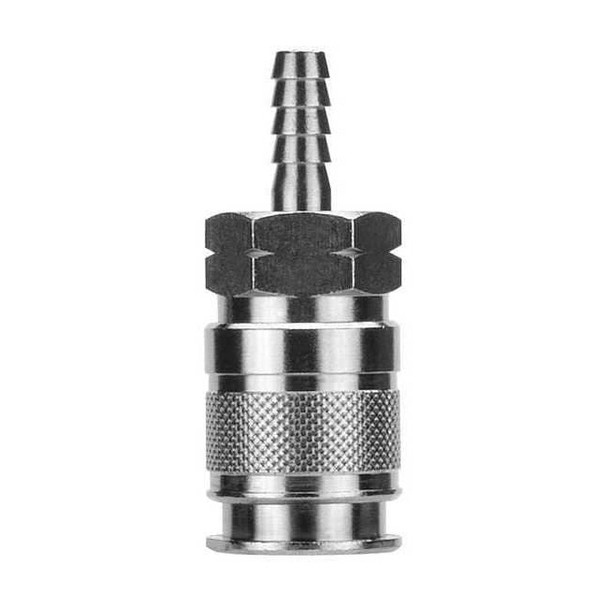

Aignep Usa Quick Disconnect Fitting,Clamp,1-4,Brass 80193-04

The AIGNEP USA - 80193-04 is a quick connect hose coupling intended for use with compressed air systems and pneumatic air tools. It is intended to provide quick connection and disconnection using the sleeve locking mechanism and poppet valve. The coupling features a 1/4 in brass body with a nickel-plated finish and includes a hose barb connection for attachment to a 1/4 in barb/hose fitting size. Its design supports a maximum flow rate of 595 lpm and a maximum working pressure of 250 psi at 70°F, operating within a temperature range of 0°F to 160°F. This coupling is compatible with universal interchange standards. Key Features: - Material: Brass with nickel-plated coating - Connection type: Hose Barb with 1/4 in barb size and 1/4 in hose fitting size - Coupling component: Socket with sleeve locking type - Hose fitting gender: Male - Includes stainless steel locking balls and protected seal with nitrile sealing material - Valve type: Poppet valve included - Overall length: 2.38 in, maximum outside diameter: 0.94 in - Maximum working pressure: 250 psi @ 70°F - Maximum flow rate: 595 lpm - Temperature range: 0°F to 160°F - Interchange type: Universal
