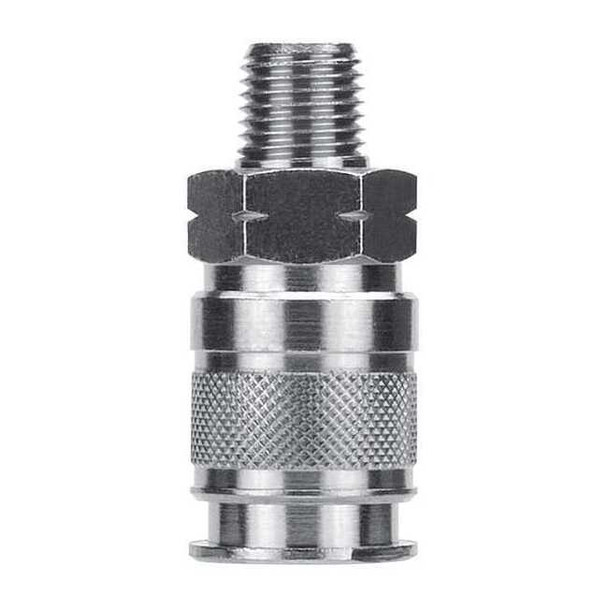

Aignep Usa Quick Disconn. Fitting,(M)NPT,1-4,Brass 80191-04

The AIGNEP USA - 80191-04 is a quick connect hose coupling designed for supports quick connection and disconnection using a sleeve locking mechanism of hoses within compressed air systems and air tools. Constructed from brass with a nickel-plated finish, this coupling provides a joint with a sealing mechanism intended to limit air leakage during properly performed connection using a sleeve locking mechanism and a poppet valve that controls air flow during connection. It features a 1/4 in body size and coupling size with a male hose fitting, compatible with 1/4 in NPT male connections and universal interchange according to the stated specifications. The coupling has a maximum rated flow rate of 595 L/min and is rated for working pressures up to 250 psi at 70°F at 70°F, is rated for operation within 0°F to 160°F. Key Features: - Material: Brass with nickel-plated finish - Connection Type: 1/4" NPT Male threads - Coupling Locking Type: Sleeve - Valve Type: Poppet valve included - Seal Material: Nitrile - Max. Flow Rate: 595 L/min - Max. Working Pressure: 250 psi at 70°F - Temperature Range: 0°F to 160°F - Overall Length: 2.13 inches - Max. Outside Diameter: 15/16 inches - Includes: Nickel-plated brass body, stainless steel locking balls, protected seal - Interchange Type: Universal - Application: Compressed air systems, air tools
