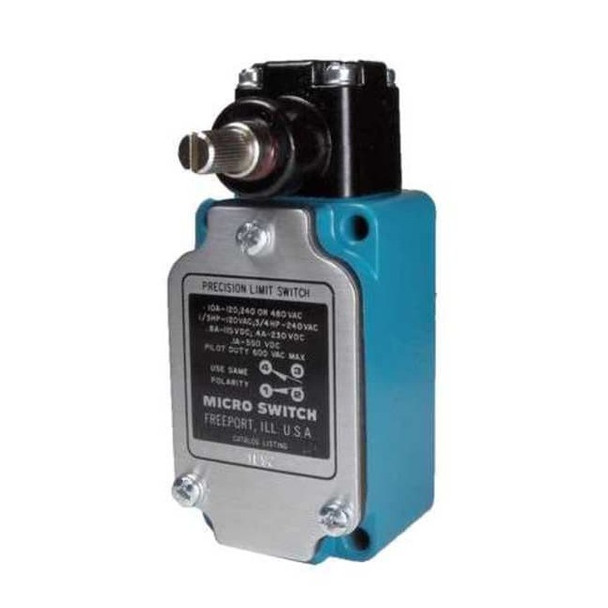

Limit Switch - LS Series, Rotary Head, 10A, Compact Zinc Body, NEMA Rated 1LS2-L

Honeywell’s MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited available space. Key Features: - Contact Rating: 10A at 480V AC - Actuator Style: Rotary head, no lever; side actuator location - Body Construction: Die-cast zinc; miniature style; body dimensions—height: 2.7 in, width: 1.19 in, depth: 1.13 in - Mounting Style: Surface mount with four mounting holes (0.19 in diameter), rectangular pattern - Electrical Connection: Screw terminals with threaded entry (1/2 in NPT) - Travel Parameters: Pretravel—20°, overtravel—30°, differential travel—12° - Operating Force/Torque: Maximum operating force of 4.5 in-lb - Temperature Range: -20°F to 160°F (-29°C to 71°C) - Rated for use within NEMA types 1, 3, 4, 6, and 13 enclosures - Certified to applicable CSA and UL standards
