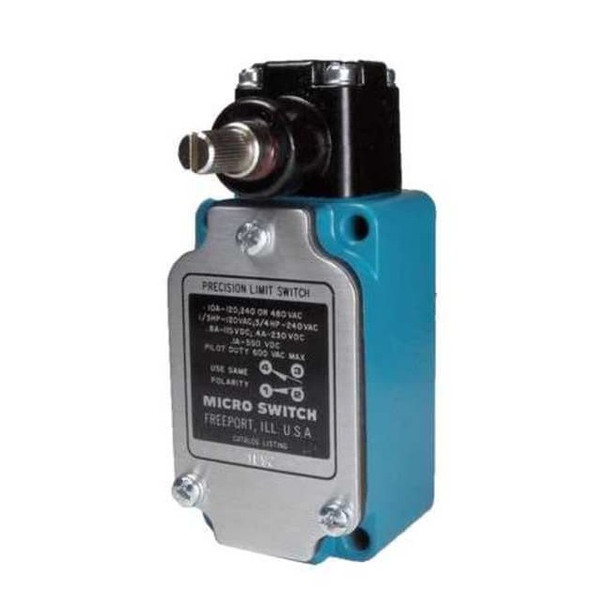

Limit Switch - Rotary Head, SPDT, Zinc Die Cast, 10A 480V, NEMA Rated 1LS23

Honeywell’s MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited space, as specified by the product dimensions and ratings. This limit switch intended for applications consistent with its specifications features a non plug-in, zinc die-cast miniature body with a rotary head actuator and no lever. The unit offers 1NC/1NO (SPDT) contact configuration and screw terminal electrical connections. Key Features: - AC Contact Rating: 10A at 480V - Actuator Style: Rotary head, no lever; side location - Body Material & Size: Zinc die cast; body dimensions 2.7 in (H) x 1.57 in (W) x 1.13 in (D) - Mounting: Surface mount with four 0.19 in diameter holes on a rectangular pattern - Electrical Connection: Screw terminals; wiring entry via 1/2 in NPT - Travel Parameters: Differential travel of 12°, pretravel of 20°, overtravel of 30° - Operating Force/Torque: Requires up to 30 in-oz force or maximum torque of 1.7 in-lb - Temperature Range: -20°F to +160°F operating temperature - Enclosure Ratings: NEMA Types 1, 3, 4, 6, and13 - Standards Compliance: CSA and UL
