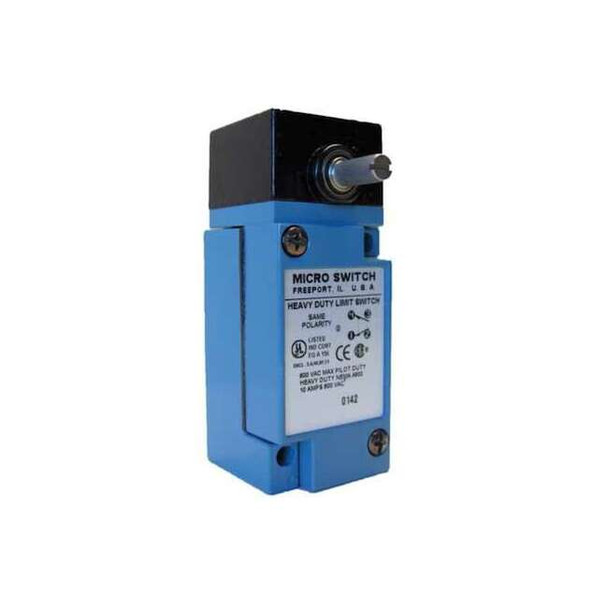

Limit Switch - Heavy Duty, Rotary, SPDT, 10A, Zinc Body, NEMA Rated LSN3K

The Honeywell Heavy Duty Limit Switch from the LSN Series is a rotary-style, side-actuated switch suitable for use in industrial environments. It features a die-cast zinc body with a standard form factor and no lever actuator included. The unit features maintained action capability in both CW and CCW directions, utilizing screw terminal connections for secure wiring. This limit switch supports single-pole double-throw (SPDT) operation with 1 normally closed (NC) and 1 normally open (NO) contact. Key Features: - Contact Rating: 10A at 600V AC; 10A at 250V DC - Actuator Style: Rotary head, no lever; side location - Action: Maintained CW/CCW movement - Body Construction: Die cast zinc as specified by manufacturer - Mounting: Surface mount with two diagonal holes (0.2 in diameter) - Electrical Connection: Screw terminals; threaded entry, 1/2 in NPT - Travel Parameters: Pretravel—65°, Overtravel—20°, Differential travel—40° - Operating Temperature Range: 30°F to 250°F (-1°C to 121°C) - Enclosure Ratings: NEMA types 1, 3, 4, 4X, 6, 6P,12,13; IP65/66/67 rated - Standards Compliance: CCC, CE, CSA, UL
