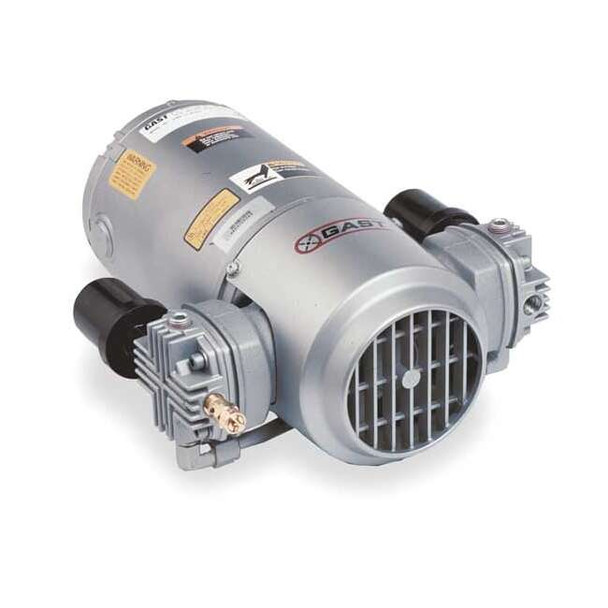

Gast Piston Air Compressor-Vacuum Pump,3-4HP 5LCA-251-M550NGX

The Gast 5LCA-251-M550NGX is an oil-free, twin-cylinder piston air compressor/vacuum pump with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 4 CFM at 50 psi up to 5.85 CFM at 0 psi, a maximum continuous pressure of 50 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 16/8 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.5 x 12.25 x 8.875 in (L x W x H).
