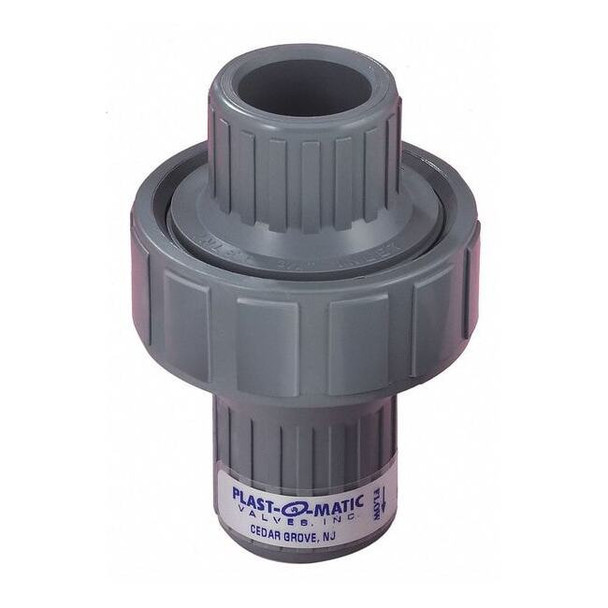

Plast-O-Matic 3-4" FNPT PVC Disc Check Valve CKM075V-PV

PLAST-O-MATIC CKM075V-PV is a 3/4 in inline disc check valve with FNPT x FNPT threaded female connections. It is configured for one-direction flow applications and reverse-flow control in piping systems handling compatible corrosive media. The PVC body, diaphragm check mechanism, and /FKM sealing components support use with media compatible with PVC and /FKM components in backflow control applications. Key Features: 3/4 in nominal valve size with 3/4 in FNPT x FNPT connections Inline disc body design with single-flow configuration PVC body construction Diaphragm check mechanism Seal material: ; seat material: Cracking pressure: 1.000 to 1.500 psi Flow rating: 7 gpm Maximum operating pressure: 150 psi; maximum back pressure: 100 psi Maximum water pressure: 150 psi at 77 degrees F Operating temperature range: 32 degrees F to 140 degrees F Mounting orientation: horizontal or vertical; mounting position: any Overall length: 4.13 in; overall height: 4-3/32 in Silent check feature: included
