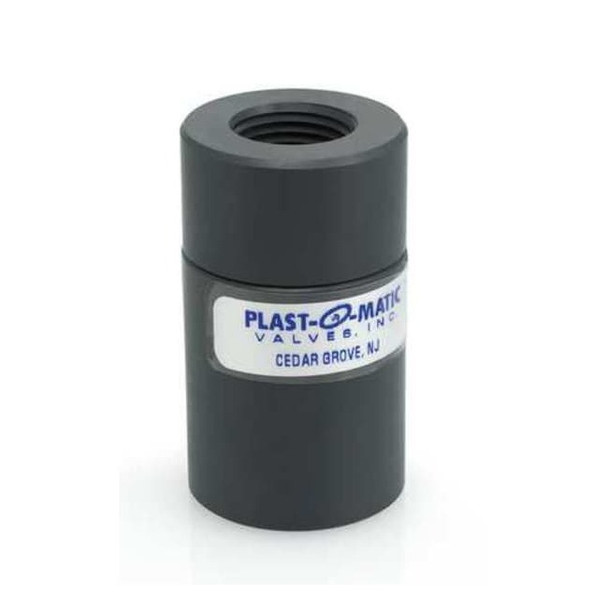

Check Valve, CKD Series, 1-2 in, FNPT x Socket, Inline Disc, PVC Body CKD050V-PV

PLAST-O-MATIC CKD050V-PV is a 1/2 in. inline check valve configured for one-way flow applications and reverse-flow reduction in piping systems. This inline disc valve has a PVC body and is intended for corrosive and ultra-pure liquid service. It features a diaphragm check mechanism and can be mounted horizontally or vertically. Key Features: Valve type: Check valve with inline disc body design for one-direction flow applications Size: 1/2 in. nominal valve size with 1/2 in. connections on both sides Body material: PVC Connection style: FNPT x Socket; side 1 female NPT, side 2 female connection Check mechanism: Diaphragm with FKM check mechanism material Seal and seat materials: FKM/ seal and seat; seal listed as TFE, carbon filled Cracking pressure: 0.5 psi Flow rating: 4 gpm with Cv of 1 Pressure and temperature ratings: 140 psi maximum operating pressure, 150 psi at 77 degrees F maximum water pressure, and 32 to 140 degrees F operating temperature range Mounting: Horizontal or vertical Flow design: Single; full flow: No Overall dimensions: 2 19/32 in. length, 1 1/2 in. overall height, 1 1/2 in. width
