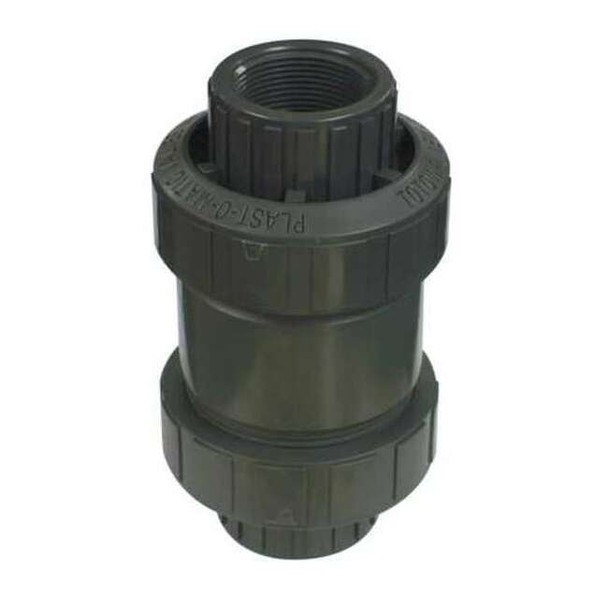

Check Valve, CKS Series, 2 in, FNPT x Socket, Inline Disc, PVC Body, Viton Seal CKS200VT-NC-PV

PLAST-O-MATIC CKS200VT-NC-PV is a 2 in inline check valve for one-way flow applications. This inline disc valve features a PVC body, is listed for corrosive media applications, and uses a poppet check mechanism with /FKM sealing components. It can be mounted horizontally or vertically and operates at pressures up to 100 psi, with a cracking pressure of 1.000 to 1.500 psi. Key Features: Valve type: Check valve with inline disc body design for one-way flow applications Size: 2 in nominal valve size with 2 in pipe/tube size Body material: PVC Application/media: Corrosive media Connection type: FNPT x Socket; side 1 female NPT, side 2 female socket Flow capacity: 45 gpm Cracking pressure: 1.000 to 1.500 psi Pressure rating: 100 psi maximum operating pressure; 100 psi at 75 degrees F maximum water pressure Temperature range: 32 degrees F to 140 degrees F Seal and seat material: /FKM Check mechanism: Poppet Spring material: PFA-encapsulated stainless steel Mounting: Horizontal or vertical Silent-check design: Yes Overall length: 8.38 in
