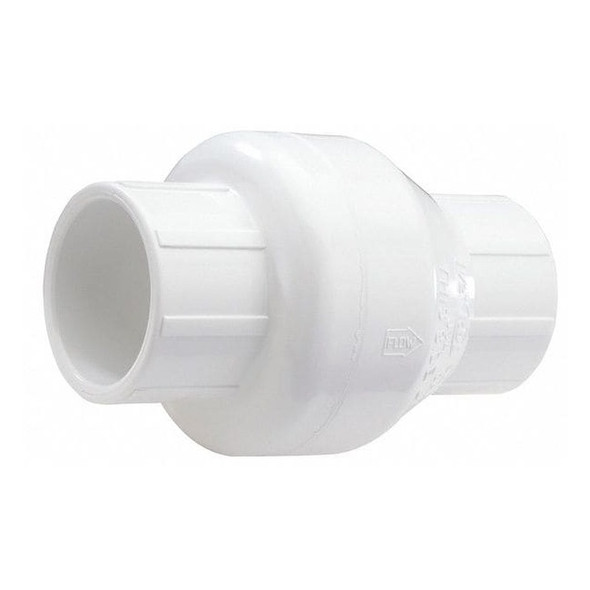

Swing Check Valve, Inline, 1-2 in Pipe Size, Socket x Socket, PVC Body 1520-05

This NDS swing check valve is an inline, single-flow check valve for general-purpose water service. It uses a swing check mechanism and is designed for one-way flow and closure when flow reverses. The valve is intended for use in applications requiring limitation of reverse flow in piping systems. The PVC body with IPS slip socket connections is sized for 1/2 in pipe and can be mounted horizontally or vertically. Key Features: Valve type: Swing check valve with inline body design Body material: PVC Connection type: Socket x Socket, IPS Slip x IPS Slip, 1/2 in x 1/2 in For media: Water Cracking pressure: 0.25 psi Flow rate: 4.46 gpm Full flow: Yes Seal material: EPDM Seat material: PVC Pressure ratings: 125 psi at 72 Degrees F maximum pressure; 150 psi at 70 Degrees F maximum water pressure Temperature range: 14 Degrees F to 140 Degrees F Mounting orientation: Horizontal, Vertical Standards/certifications: NSF 61 Overall length: 3.5 in
