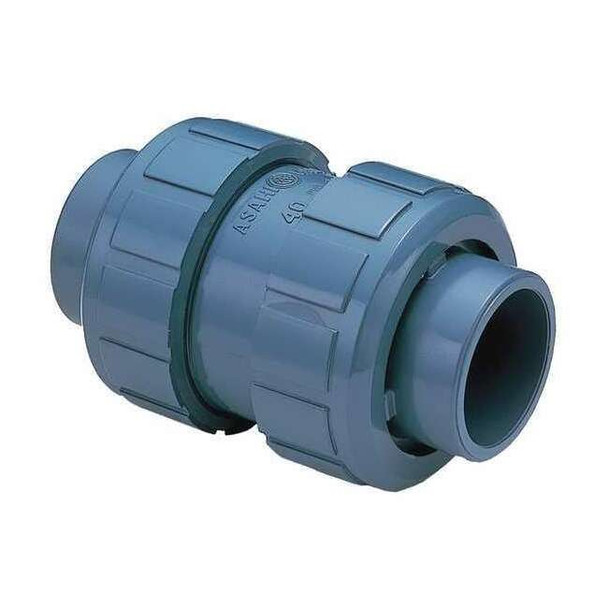

Ball Check Valve, Inline, 1-2 in Pipe Size, Socket x Socket, PVC Body 1210005

ASAHI 1210005 is a 1/2 in. inline ball check valve for flow control in water and compatible chemical lines. It uses a ball check mechanism configured for one-direction flow and reverse-flow reduction, with a 1 psi cracking pressure. The valve has a PVC body with EPDM seat and seal materials for applications requiring these material specifications, and it can be mounted in horizontal or vertical orientations. Key Features: Valve type: Ball check valve with single-flow inline ball design. Size: 1/2 in. nominal valve size with 1/2 in. connections on both sides. Connection style: Socket x Socket with female union socket connections on side 1 and side 2. Body material: PVC. Seal and seat material: EPDM. Pressure rating: 150 psi maximum operating pressure; 150 psi at 120 degrees F maximum water pressure. Temperature range: 30 degrees F minimum to 120 degrees F maximum operating temperature. Flow characteristics: Cv 6.5; non-full-flow design. Mounting: Horizontal or vertical orientation. Standards and certifications: ASTM D1784 Cell Class 12454A; NSF 61. Overall length: 3.43 in.; overall height: 1-57/64 in.; width: 1-57/64 in.
