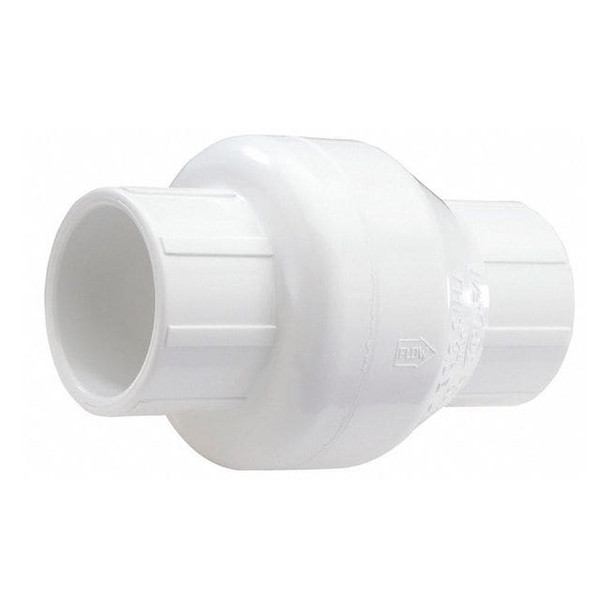

Nds Swing Check Valve, Inline, 3-4 in, Socket x Socket, PVC Body 1520-07

This NDS swing check valve is an inline, single-flow valve for general-purpose water service. It uses a swing check mechanism and is intended for one-way flow applications and reverse-flow reduction in 3/4 in piping systems. The valve features a PVC body, PVC seat, and EPDM seal with socket x socket IPS slip connections, and it can be mounted horizontally or vertically. Key Features: Valve type: Swing check valve with inline body design Size: 3/4 in nominal valve size with 3/4 in connections on both sides Connection type: Socket x Socket; IPS Slip x IPS Slip Body material: PVC Seat material: PVC Seal material: EPDM Media: Water Cracking pressure: 0.25 psi Flow rate: 12.47 gpm Full flow: Yes Maximum operating pressure: 125 psi Maximum water pressure: 150 psi at 70 degrees F Temperature range: 14 degrees F to 140 degrees F Mounting orientation: Horizontal or vertical Standard: NSF 61 Overall length: 3.5 in
