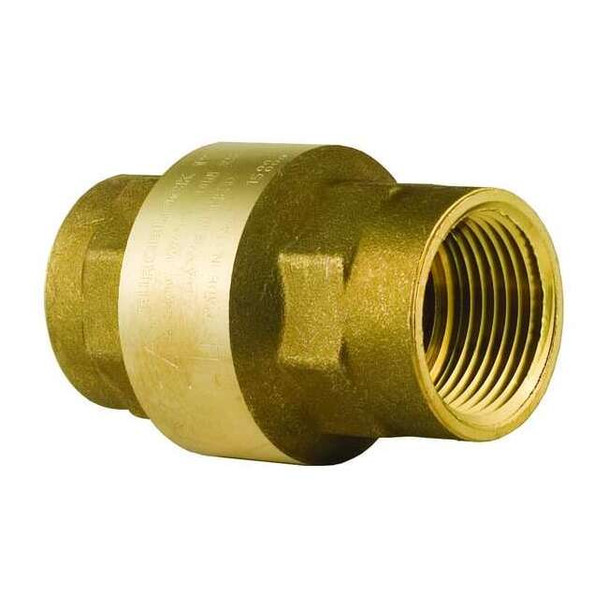

Bonomi 2-1-2" NPT Brass Spring Check Valve 100012LF-2-1-2"

BONOMI 100012LF-2-1/2 is a 2-1/2 in. inline spring check valve with FNPT x FNPT connections. For general-purpose flow control in gas, oil, and water lines; configured for one-direction flow and reverse-flow reduction. The lead-free brass body, swing check mechanism, and full-flow design; rated flow: 91.79 gpm with a 0.5 psi cracking pressure. Key Features: Valve type: Inline spring check valve, single-flow design, 2-way Size: 2-1/2 in. nominal valve size with 2-1/2 in. FNPT female connections on both ends Body material: Lead-free brass Check mechanism: Swing design with PPS mechanism material Seal and seat materials: Buna-N seal, Buna-N/NBR seat Spring material: 302 stainless steel Flow rating: 91.79 gpm; Cv: 90.1 Cracking pressure: 0.5 psi Pressure ratings: 175 psi WOG maximum pressure, 400 psi maximum water pressure Temperature range: -4°F minimum operating temperature to 210°F maximum operating temperature Mounting orientation: Horizontal or vertical Dimensions: 4.37 in. overall length, 4 25/64 in. overall height and width, 3 1/4 in. hex size Standards and certifications: NSF 61, NSF 372, UL Listed, ANSI B1.20.1
