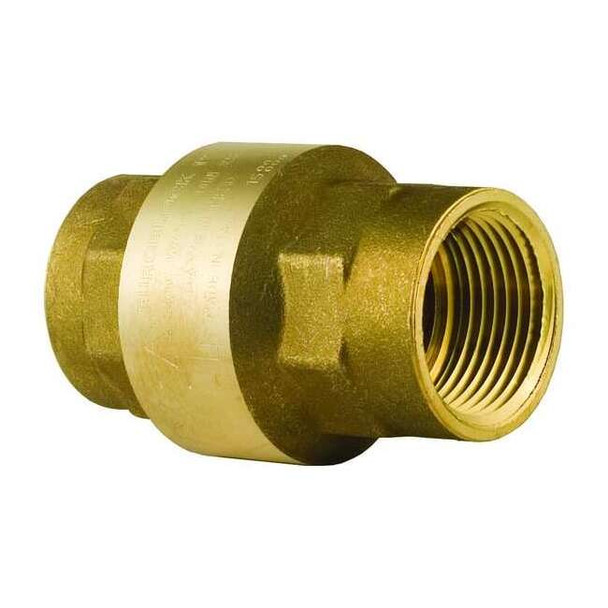

Bonomi 2" NPT Brass Spring Check Valve 100012LF-2"

The BONOMI 100012LF-2 is a 2 in inline spring check valve with FNPT x FNPT connections and a lead-free brass body. It is for general-purpose flow control in compatible gas, oil, and water lines; intended to permit flow in one direction and restrict reverse flow. This 2-way valve features a swing check mechanism, full-flow design, and a cracking pressure of 0.5 psi. Key Features: 2 in nominal valve size with female NPT connections on both ends Lead-free brass body with PPS check mechanism Inline spring body design with swing check mechanism Media: gas, oil, water Cracking Pressure: 0.5 psi Flow: 56.41 gpm Cv: 71.3 Maximum operating pressure: 400 psi; 400 psi WOG Operating temperature range: -4 degrees F to 210 degrees F Seat/Seal Material: Buna-N, NBR Spring Material: 302 stainless steel Mounting orientation: horizontal, vertical Certification: NSF 61 Standards: ANSI B1.20.1, NSF 372, UL Listed Overall dimensions: 3.62 in L x 3-29/64 in H x 3.44 in W
