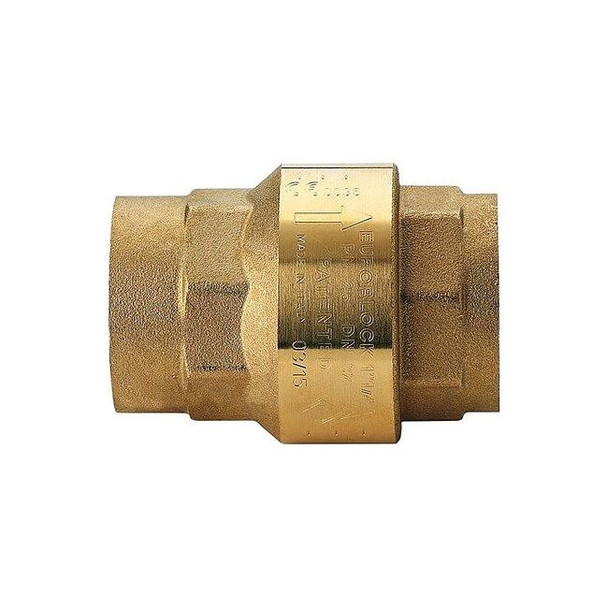

Bonomi 1-2" NPT Brass Spring Check Valve 100003-1-2"

The BONOMI 100003-1/2 is a 1/2 in inline spring check valve with a brass body and FNPT x FNPT connections. It is for use with gas, oil, steam, and water for one-direction flow applications in piping systems. The single-flow, full-flow design uses a swing check mechanism with a 0.5 psi cracking pressure. Mounting orientation: horizontal or vertical. Key Features: 1/2 in nominal valve size with 1/2 in female NPT connections on both ends Brass body construction Inline spring body design with swing check mechanism Media: gas, oil, steam, water Cracking pressure: 0.5 psi Flow rate: 6.7 gpm Cv: 9.2 Full-flow design Maximum operating pressure: 400 psi Maximum steam pressure: 125 psi WSP Operating temperature range: -4 degrees F to 366 degrees F Seat and seal material: FKM/ Spring material: 302 stainless steel Check mechanism material: PPS Overall length: 2.22 in; overall height: 1-3/8 in; width: 1.35 in Standards: ANSI B1.20.1 Mounting orientation: horizontal or vertical
