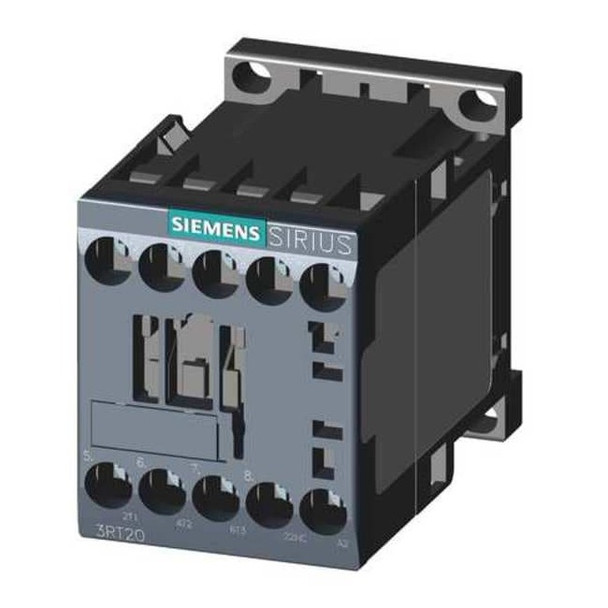

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw 3RT20161AB02

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch (24 V AC) designed to control power circuits in accordance with IEC standards. It uses screw terminals and is part of the SIRIUS 3RT20 family (Frame S00), with one auxiliary contact (1NC). The device is designed for use within the specified voltage range of up to 690 V AC in three-phase applications, and features mounting options on DIN Rail or surface mounting, with no enclosure and IP20 protection. Overall dimensions are approximately 1.97 inches (W) x 3.08 inches (H) x 2.45 inches (D). - Coil voltage: 24 V AC - Action: Non-Reversing; Reversing: No - Auxiliary contacts: 1 (1NC); Includes Auxiliary Contacts: Yes - Poles/Phase: 3; Phase: Three - Terminal connection: Screw - Frame size/Series: S00; Series: SIRIUS 3RT20 - Enclosure: No Enclosure; IP Rating: IP20 - Standards: REACH Art 33, WEEE (2012/19/EU) - Frequency: 50/60 Hz - Maximum voltage: 690 V AC - Full Load Amps: Inductive 9 A; Resistive 22 A - HP @ Three Phase: 208V 2 hp; 240V 3 hp; 480V 5 hp; 600V 7 1/2 hp - Max Operating Watts: 4 kW (at 400V, AC-3); 13 kW (at 400V, AC-1) - Mechanical durability: 30,000,000 cycles - Overall dimensions: approximately 1.97 inches (W) x 3.08 inches (H) x 2.45 inches (D)
