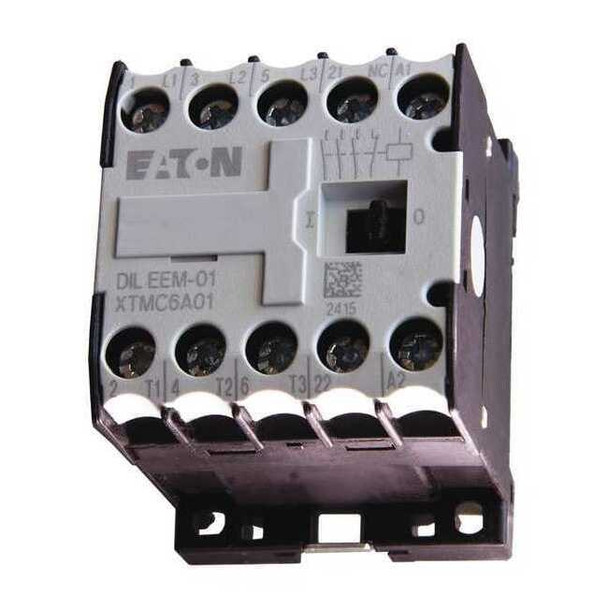

IEC Miniature Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw XTMC6A01T

The IEC Miniature Magnetic Contactor has a 24 V AC coil, non-reversing action, and 3 poles with 1 normally-closed auxiliary contact. Screw terminals enable mounting on DIN rails or panels. Frame A, XT series; embedded surge suppressor; IP20 enclosure rating; no enclosure. The unit's maximum voltage rating is specified as up to 690 V (AC/DC). Key features - Action: Non-Reversing - Poles: 3 - Coil Voltage: 24 V AC - Auxiliary Contacts: 1 NC - Embedded Surge Suppressor: Yes - Mounting Style: DIN Rail, Panel - Terminal Connection Type: Screw - Frame Size / Series: Frame A, XT - Frequency: 50/60 Hz - Maximum Voltage Rating: 690V AC/DC - IP Rating: IP20 - Enclosure: No Enclosure - Mechanical Durability: 10,000,000 cycles - Operating Temperature: -13 to 122 Degrees F - Dimensions: Height 2.28 in, Width 1.77 in, Depth 3.27 in - Mounting Hole Diameter: 0.16 in; Distances: Height 1.98 in, Width 1.38 in - Phase: Three - Standards: CCC, CSA, EN/IEC 60947, UL Listed, VDE 0660
