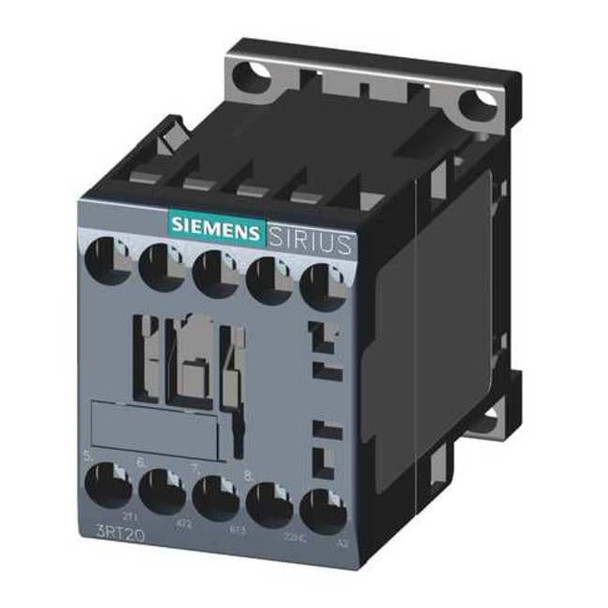

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw 3RT20171AB02

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch (24 V AC) with one NC auxiliary contact. It uses screws for electrical connections and belongs to the SIRIUS 3RT20 family (frame S00). Rated for operation within the specified voltage ranges. Mounting options include DIN Rail or surface mounting in a vertical orientation. Key features - Coil Voltage: 24 V AC - Action: Non-Reversing - Poles: 3 - Auxiliary Contacts: 1 NC - Main Contacts: 3 NO - Frame Size / Series: S00 / SIRIUS 3RT20 - Terminal Connection Type: Screw - Mounting Style / Position: DIN Rail, Surface; Vertical - IP Rating: IP20 - Maximum Voltage Rating: 690 V AC - Frequency: 50/60 Hz - Full Load Amps: Inductive 12 A; Resistive 22 A - Mechanical Durability: 30,000,000 cycles - Includes Auxiliary Contacts: Yes - Dimensions (approx.): Width 1.77 in; Height 2.4 in; Depth 3.3 in - Standards: REACH Art 33, WEEE (2012/19/EU) - Operating Temperature: Rated for operation within the specified temperature range - Phase: Three - Reversing: No
