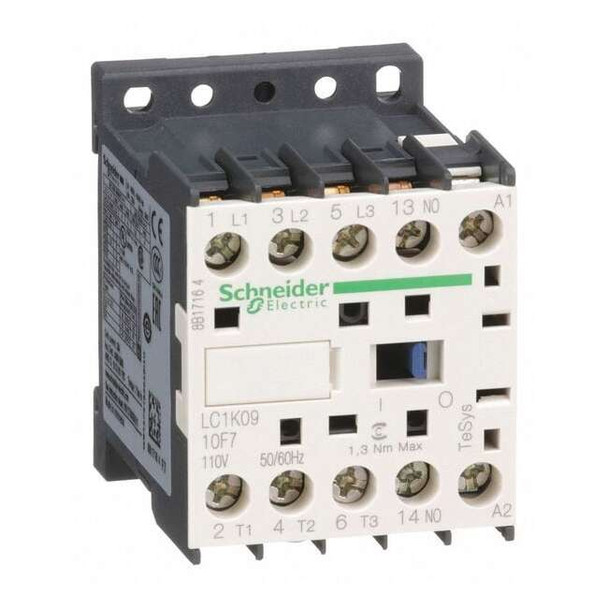

IEC Miniature Magnetic Contactor, 1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp LC1K0910F7

The Schneider Electric IEC Miniature Magnetic Contactor is a compact, electrically operated switching device (IEC miniature magnetic contactor) rated for operation within specified load conditions. It is a 3-pole, non-reversing configuration as specified with a 110 V AC coil and screw clamp terminals, featuring 3 normally open main contacts and 1 normally open auxiliary contact (1NO). The unit is part of the TeSys family and uses the TeSys frame, does not include surge suppression features; suitable for use in appropriate environments as per specifications. Key features - Non-reversing configuration as specified - Coil Voltage: 110 V AC - Poles/Main Contacts: 3 poles; 3 NO - Auxiliary Contacts: 1 NO (Includes Auxiliary Contacts: Yes) - Auxiliary Contact Form: 1NO - Termination: Screw Clamp - Enclosure: No Enclosure - Rated for operation up to 480 V AC within specified parameters - Frequency: 50/60 Hz - Frame / Series: TeSys - Standards: CSA, UKCA, UL Listed - Dimensions: Depth 1.97 in; Height 1.73 in; Width 1.73 in - Embedded Surge Suppressor: No - non-reversing configuration as specified - Full Load Amps (Resistive/Inductive): 20 A / 9 A
