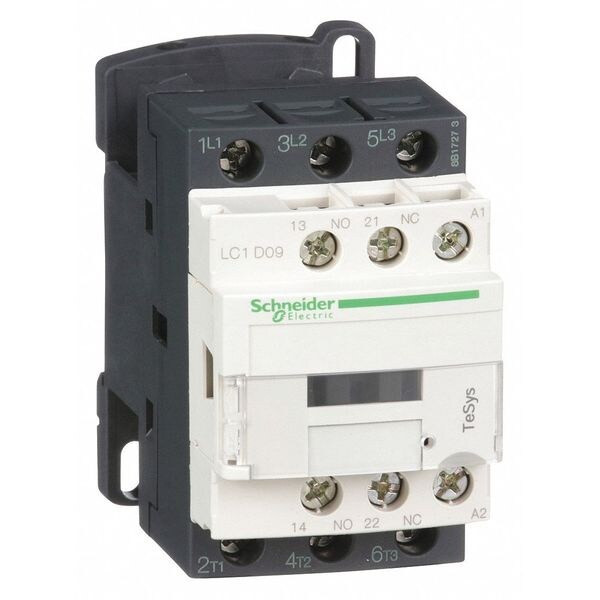

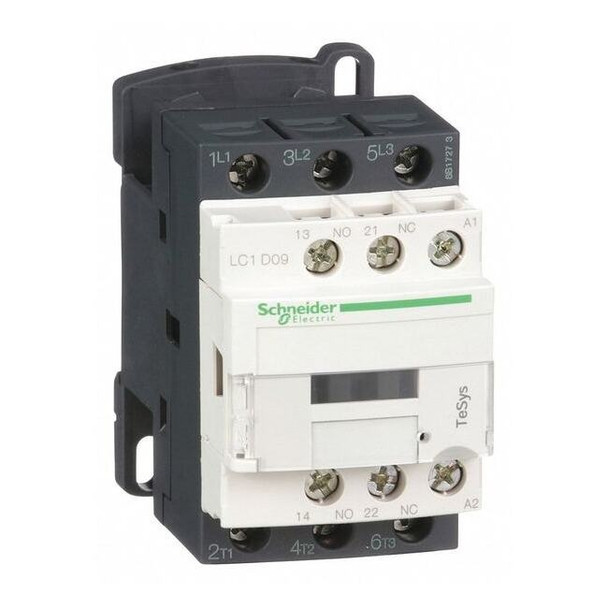

IEC Magnetic Contactor, 1NC-1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp LC1D09F7

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch rated for operation within specified control system parameters. Compatible with 110 V AC coils; includes auxiliary contacts as specified. Designed for use within its rated load types and terminal configurations, with no enclosure included. Key features - Coil Voltage: 110 V AC - Poles / Main Contacts: 3 poles; 3 normally open main contacts - Auxiliary Contacts: 2 total; 1NO/1NC configuration (Includes Auxiliary Contacts: Yes) - Reversing: Non-Reversing - Electrical Connection: Screw Clamp Terminals - Series / Frame: TeSys Deca / TeSys - Frequency: 50/60 Hz - Rated for operation up to 690 V AC - Rated capacities under specified conditions - IP Rating / Enclosure: IP20; No Enclosure - Net Weight: 0.32 kg - Dimensions (Overall): Depth 3.39 in; Height 3.03 in; Width 1.77 in - Hold VA: 7.5 VA (60 Hz, 20°C); 7 VA (50 Hz, 20°C) - Withstand impulse voltages up to this level when used within specifications - Insulation resistance exceeds this value when tested according to standards - Conforms to these recognized standards when installed correctly - Fire Rating: UL 94 V1 - Environment Attributes: Mercury Free, Pollution Degree 3, PVC Free, Toxic Heavy Metal Free - Shock/Vibration: 15 G (Contactor Closed); 10 G (Contactor Open) - Standards/Certification: Includes Protective Cover: Yes - Phase: Three - Impedance: 2.5 mΩ - Maximum Operating Temperature: 140°F - Withstands impulse voltages up to this level when used within specifications
