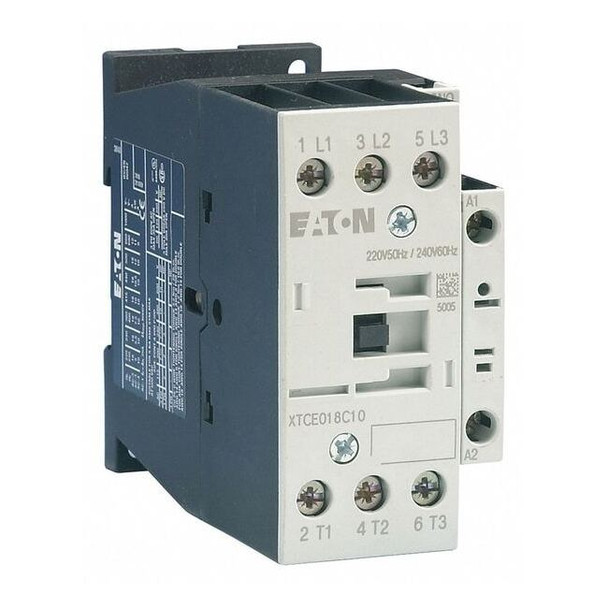

IEC Magnetic Contactor, 1NC, 120V AC, 3 P, Non-Reversing, Screw XTCE018C01A

Packaged as an IEC-style device in the XT series, it uses frame size C and is rated for use within IEC control circuit specifications in modular panels. - Series/Type: XT; Frame Size: C; Type: Full voltage non-reversing contactor; Poles: 3; Action: Non-Reversing; Reversing: No; Includes auxiliary contacts: Yes (1NC) - Coil Voltage: 120 V AC; Amperage Rating: 18 A; rated for operation at specified load currents within the listed ratings - Maximum Voltage Rating: rated for operation up to the specified voltage rating; Frequency: 50/60 Hz; Frequency Rating: 50-60 Hz - Certifications/Standards: UL Listed; CSA Certified; CE Marked; IEC 60947; EN 60947; RoHS - Enclosure/Protection: IP20; NEMA Enclosure Rating: No Enclosure - Mounting Style: DIN Rail, Panel; Electrical Connection: Screw Terminals - Auxiliary Contacts: Yes (1 NC); Embedded Surge Suppressor: Yes - Mechanical Durability: mechanical durability replaced with: Mechanical Durability: tested according to durability standards but actual lifespan may vary based on usage conditions; Electrical Durability: tested according to durability standards but actual lifespan may vary based on usage conditions - Operating Temperature: designed to operate within the specified temperature range - Dimensions: Width 3.5 in; Height 2.0 in; Depth 4.0 in - Mounting/Attachment: Mounting Hole Diameter 0.16 in; Mounting Hole Distances - Height 2.95 in; Width 1.38 in - Response Time: AC opening <14 ms; AC closing <22 ms; DC opening <30 ms; DC closing <47 ms
