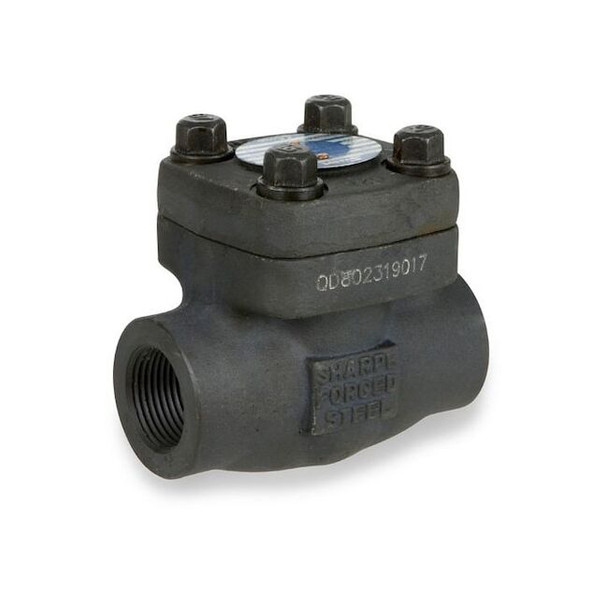

Check Valve, 2483SC Series, 2 in, Inline Swing, FNPSM x FNPSM, Carbon Steel 4371001270

SHARPE 4371001270 is a 2 in inline swing check valve with threaded female NPSM connections on both ends. It is configured for one-way flow applications with an inline swing check mechanism for reverse-flow control in process piping for media compatible with the valve materials, pressure rating, temperature rating, and applicable system requirements. The valve has a carbon steel body, a 316 stainless steel swing mechanism and spring, and a metal seat with 304 stainless steel and graphite seal materials. Key Features: Valve type: Inline swing check valve for one-way flow applications Size and connections: 2 in nominal valve size with female NPSM threaded connections on both ends Body material: Carbon steel Internal materials: 316 stainless steel swing mechanism and spring Seat and seal materials: Metal seat with 304 stainless steel and graphite seal materials Maximum operating pressure: 1,415 psi Maximum operating temperature: 700 degrees F Flow capacity: Cv 82 Mounting orientation: Horizontal or vertical Dimensions: 5.51 in overall length; cap to inlet center 2 2/5 in; height, cap to inlet center 2 3/8 in Standards: API 602, NACE MR0175 Series: 2483SC
