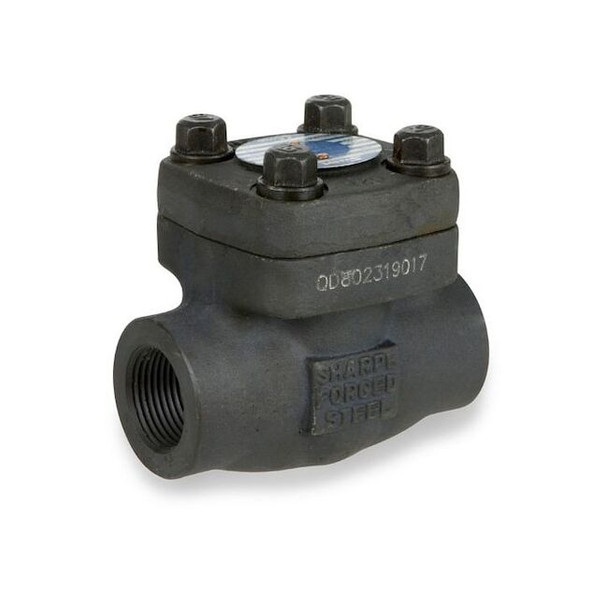

Check Valve, 2483 Series, Piston, Inline, 1-2 in, FNPSM x FNPSM, Carbon Steel 4371001430

SHARPE 4371001430 is a 1/2 in inline check valve with a piston mechanism that allows flow in one direction and closes to limit reverse flow. It is specified for corrosive chemical applications and listed for corrosives, flammable service, toxic service, and process piping. The carbon steel body, 316 stainless steel check mechanism and spring, and metal seat are specified materials of construction for compatible piping systems. Key Features: - Valve type: Single-flow, 2-way check valve with inline piston design - Size: 1/2 in nominal valve size - Connections: Female NPSM on both ends, 1/2 in x 1/2 in - Connection style: Threaded x Socket Weld - Body material: Carbon steel - Internal materials: 316 stainless steel check mechanism and spring - Seal material: 304 stainless steel and graphite - Seat material: Metal - Pressure rating: Maximum operating pressure 1,745 psi - Maximum temperature: 300 degrees F - Flow coefficient: Cv 2 - Mounting orientation: Horizontal or vertical - Overall length: 3.11 in - Standards: API 602, NACE MR0175 - Valve series: 2483
