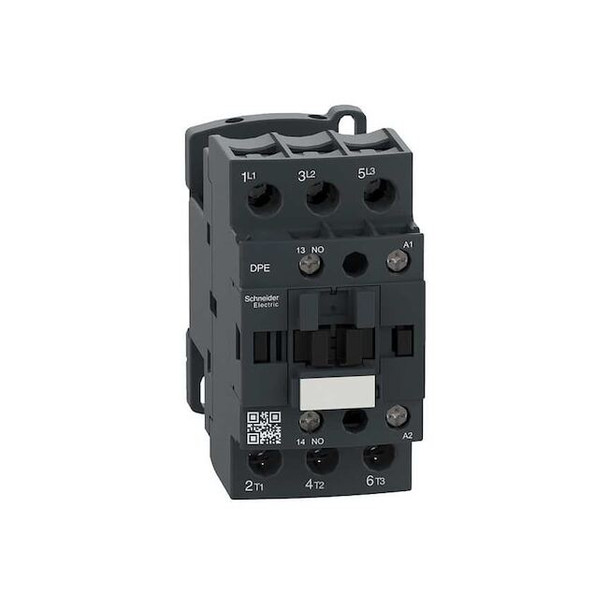

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp DPE38B7

Schneider Electric’s IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for use within IEC standards. It features a 24 V AC coil and screw clamp terminals, and is intended for use with motor control and resistive loads. The unit includes three normally open main contacts and a normally open auxiliary contact, and it is rated for up to 690 V AC at 50/60 Hz. It carries IP20 protection and no enclosure, and can be mounted on a DIN rail or plate. Key features: - Coil Voltage: 24 V AC - Poles: 3 - Main Contacts: 3 NO - Auxiliary Contacts: 1 NO - Reversing: Non-Reversing - Electrical Connection: Screw Clamp Terminals - Series: TeSys Easy - Max Voltage Rating: 690 V AC - Frequency: 50/60 Hz - IP Rating: IP20 - Enclosure: No Enclosure - Application: Motor Control, Resistive Load - Mounting Style: DIN Rail, Plate - Dimensions: Width 1.77 in, Depth 3.62 in, Height 3.35 in - Net Weight: 0.375 kg
