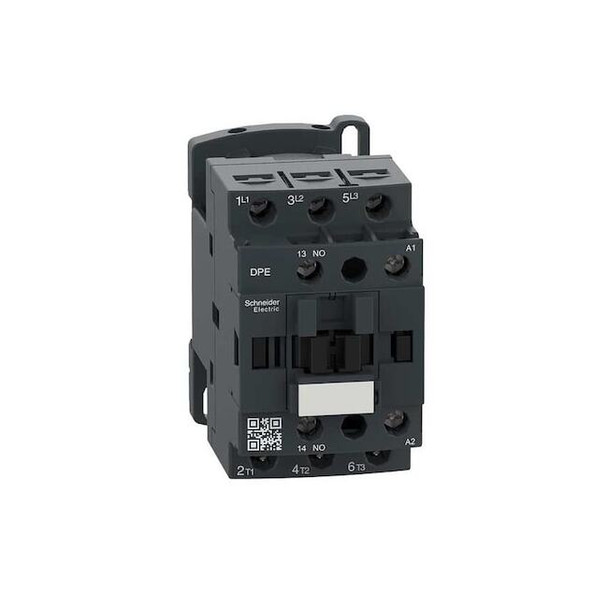

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp DPE25B7

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 3-pole device designed for motor control and resistive load applications. It operates with a coil voltage of 24V AC and features an auxiliary contact configuration of 1NO. The contactor has screw clamp terminals for electrical connection and is compatible with both DIN rail and plate mounting styles. With an IP rating of IP20, it offers protection against touch by fingers and objects greater than 12mm, as well as against harmful deposits. Key Features: - Operates at frequencies of 50/60 Hz. - Has a maximum operating temperature of 140 Degrees F and can function in temperatures as low as -40 Degrees F. - Supports horsepower ratings ranging from 1 hp (single phase -120V AC) to up to 15 hp (three-phase -600V AC). - Offers mechanical durability up to 10 Mcycles. - Comes equipped with one auxiliary contact. - Rated insulation volts are between the range of 600/690V. - Complies with several standards including CSA, EN60947 series, IEC60947 series, UL Listed for use in various industrial settings. - Maximum operating watts range from 5.5 kW (at220to230 VAC50/60Hz) to15kW(at660to690 VAC50/60Hz).
