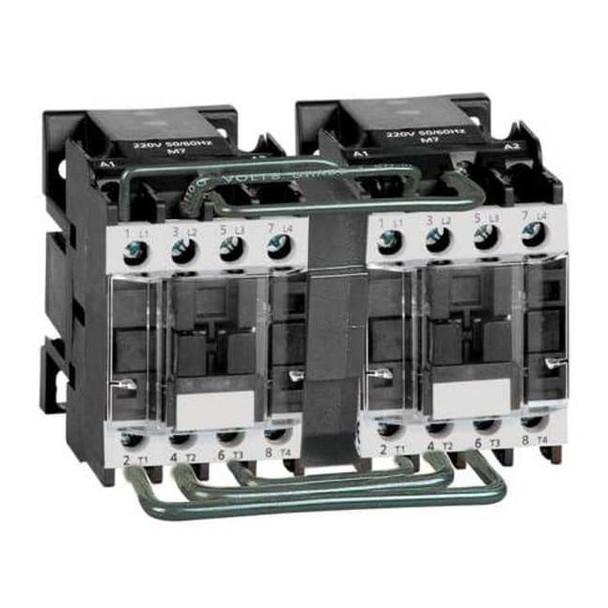

Dayton IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Reversing, Screw 6EAW6

The DAYTON IEC Magnetic Contactor is a 3-pole, 1NO, reversing IEC-style magnetic switch designed to control power circuits. It operates with a 240 V AC coil and uses screw terminals, with one normally open auxiliary contact. The unit is UL Listed and has no embedded surge suppressor or enclosure. Its dimensions are 4.13 in wide, 4.13 in high, and 3.18 in deep, and the unit is rated for operation within the specified frequency ranges and includes reversing capability. - Action: This product has reversing functionality. - Poles: 3 - Auxiliary contacts: 1 (1NO); Includes Auxiliary Contacts: Yes - Coil voltage: 240 V AC - Terminal connection: Screw - Enclosure: No Enclosure (NEMA rating) - Frequency: 50/60 Hz - Full load amps: Inductive 9 A; Resistive 20 A - Horsepower ratings: 1/2 hp @ 120V (single phase); 1 hp @ 230V (single phase); 1 hp @ 240V (single phase); 2 hp @ 208V (3-phase); 2 hp @ 240V (3-phase); 5 hp @ 480V (3-phase); 7 1/2 hp @ 575V (3-phase) - Standards: UL Listed - Reversing capability: Reversing - Dimensions: Width 4.13 in; Height 4.13 in; Depth 3.18 in
