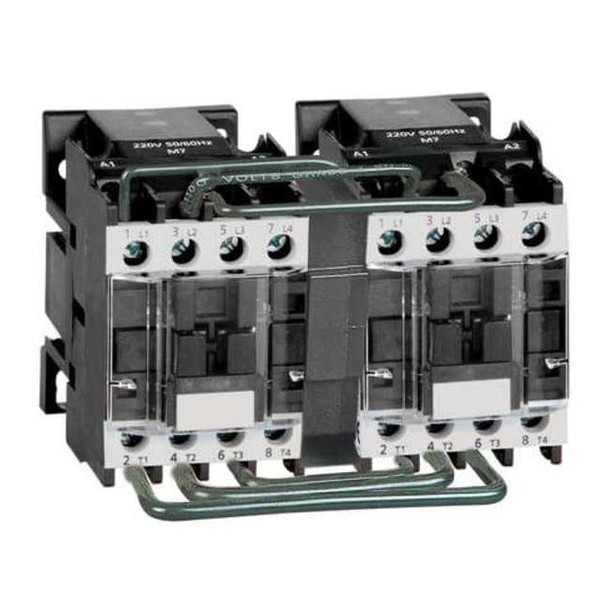

Dayton IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Reversing, Screw 6EAW9

The DAYTON IEC Magnetic Contactor is an electrically operated switching device (IEC standard) rated for operation within the specified voltage and current ranges. It is a 3-pole, reversing contactor with a 240 V AC coil, rated for use at 50/60 Hz frequency as specified. The unit includes one auxiliary normally open contact and uses screw terminals for wiring. It does not include built-in surge suppression features. The unit is supplied without an enclosure; suitable for installation in appropriate enclosures per application requirements. - Contactor type: IEC Magnetic Contactor (IEC standard) - Action: Reversing - Reversing capability: Reversing - Poles: 3 - Coil Voltage: 240 V AC - Auxiliary contacts: 1NO (includes one auxiliary contact) - Auxiliary contact form: 1NO - Frequency: 50/60 Hz - Dimensions (W x H x D): 4.13 in x 4.13 in x 3.18 in - Width: 4.133 in; Height: 4.13 in; Depth: 3.18 in - Terminal connection type: Screw - Enclosure: Supplied without enclosure; suitable for installation in appropriate enclosures per application requirements - Standards: UL Listed - NEMA enclosure rating: No Enclosure - Includes auxiliary contacts: Yes - Number of auxiliary contacts: 1 - Full Load Amps (Inductive/Resistive): 12 A / 25 A - Full Load Current (Inductive/Resistive): 12 A / 25 A - HP @ various voltages (single/three-phase): 1 hp @ 120V; 2 hp @ 230V; 2 hp @ 240V; 3 hp @ 208V (3-phase); 3 hp @ 240V (3-phase); 7.5 hp @ 480V (3-phase); 10 hp @ 575V (3-phase)
