Hubbell Wiring Device-Kellems HBL5362BK

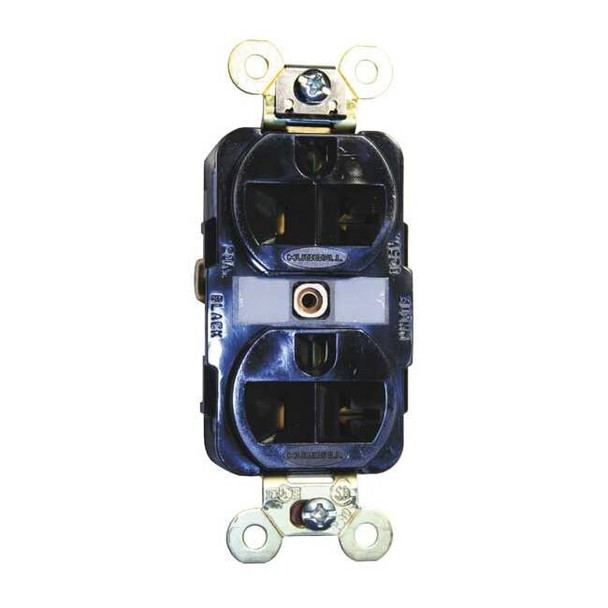

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BK is a traditional duplex straight blade receptacle suitable for use in industrial environments. It features a standard flush mount, accommodates #14 to #10 AWG copper conductors, and supports both back and side wiring methods. This receptacle is rated for 20 amps at 125 volts AC and conforms to NEMA 5-20R configuration standards.Key Features of the HUBBELL - 20A Duplex Receptacle: Amperage/Voltage: Rated for 20A, 125V AC operationNEMA Configuration: Standard NEMA 5-20R duplex outletWiring Method: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG)Material Construction: Nylon face with reinforced PET base; nickel-plated brass contactsMounting Type: Flush mount with included mounting hardwareGrounding: Integral one-piece brass ground strap; includes grounding clipFace Style: Finder Groove face styleOperating Temperature Range: -40°C to +75°C (without impact)Circuit Identification Face: Deep body design allows circuit labeling on faceplateCertain Standards Met: UL Listed, CSA Certified, Federal Specification W-C-596, NEMA WD-6 compliant
