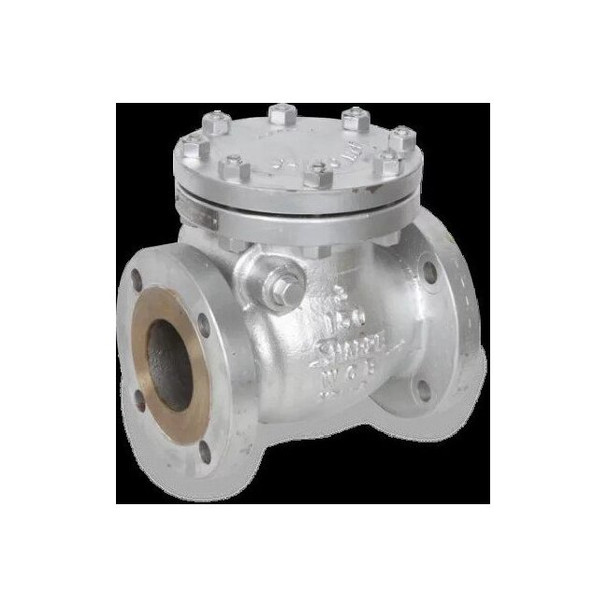

Check Valve, Series 25, Swing, 1 in, Flanged x Flanged, CF8M Stainless Steel 4371002220

SHARPE 4371002220 is a 1 in inline check valve with a swing mechanism that allows flow in one direction and closes to limit reverse flow. It features a stainless steel body with flanged female connections on both ends. Listed applications include corrosives, oil, pipeline service, steam, and water. The valve has a 0.02 psi cracking pressure and can be mounted horizontally or vertically. Key Features: 1 in nominal valve size with 1 in flanged x flanged female connections Swing check mechanism with one-direction flow design CF8M stainless steel body; check mechanism material: 316 stainless steel Metal seat with 410 stainless steel seal material Maximum operating pressure: 215 psi Maximum operating temperature: 300 Degrees F Overall length: 5 in Cap to inlet center: 2 13/25 in; height from cap to inlet center: 2 1/2 in Mounting orientation: horizontal or vertical Silent check: Standard Standards: ASME B16.34 Valve series: 25
