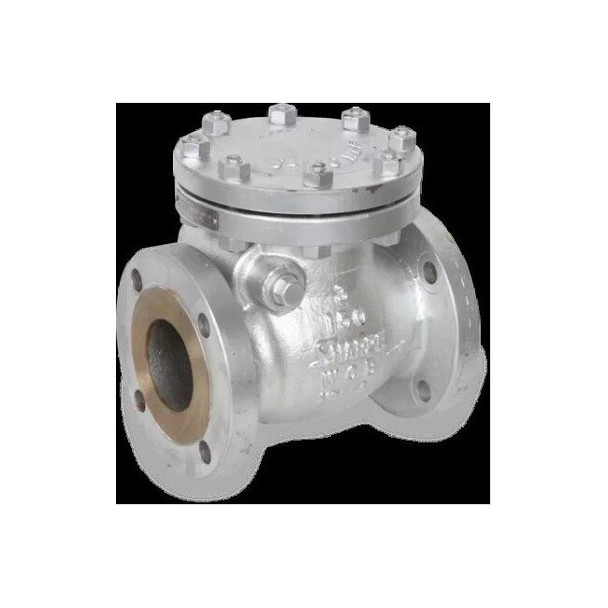

Check Valve, Series 25, Swing, 3 in, Flanged x Flanged, CF8M Stainless Steel 4371002260

SHARPE Series 25 check valve is a 3 in. inline swing check valve with flanged female connections on both ends. It is configured for one-direction flow and reverse-flow closure in compatible piping systems for compatible corrosive media, oil, pipeline service, steam, and water applications. The stainless steel body, metal seat, and 0.02 psi cracking pressure are for systems specified for inline swing check valve use. Key Features: Valve type: Single-flow swing check valve Body material: CF8M stainless steel Check mechanism material: 316 stainless steel Seal material: 410 stainless steel Seat material: Metal Connection type: Flanged x flanged Connection size: 3 in. on both sides Connection gender: Female on both sides Valve body style: Inline Mounting orientation: Horizontal, vertical Cracking pressure: 0.02 psi Maximum operating pressure: 125 psi Maximum temperature: 650 degrees F Overall length: 9.49 in. Standard: ASME B16.34 Silent check configuration: Standard
