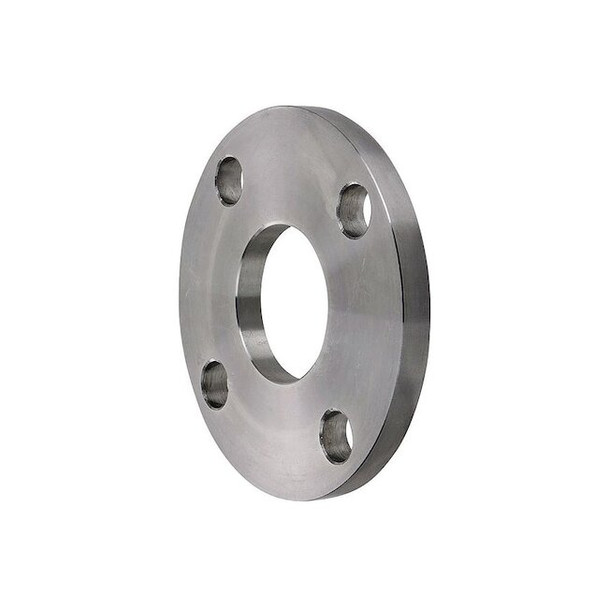

Manufacturer Varies 2" Lap Joint SS Lap Joint Flange 4381005230

The ZORO SELECT - 4381005230 is a forged lap joint flange designed for use with matching stub ends welded to pipes, allowing flange rotation for bolt-hole alignment and assembly. Made from forged 316/316L stainless steel, this flange is suited for stainless-steel piping systems requiring frequent dismantling or alignment flexibility. It has a nominal pipe size of 2 inches, complies with ASTM-SA182 and ANSI B16.5 standards, and is rated for pressure applications conforming to ANSI B16.5 Class 300 specifications, with a maximum design pressure of 720 psi and maximum steam pressure of 300 psi. Key Features: - Material: Forged 316/316L stainless steel alloy. - Flange type: Lap joint flange allowing free rotation over matching stub ends. - Nominal pipe size: 2 inches. - Pressure rating: suitable for use in piping systems operating within the specified pressure and temperature ranges. - Maximum steam pressure: 300 psi. - Flange outside diameter: 6 1/2 inches. - Bolt circle diameter: 5 inches, with 8 bolt holes of 3/4 inch diameter. - Flange thickness: 7/8 inch; overall length: 1 5/16 inches. - Connection type and surface: Lap joint. - Complies with ASTM-SA182 and ANSI B16.5 standards.
