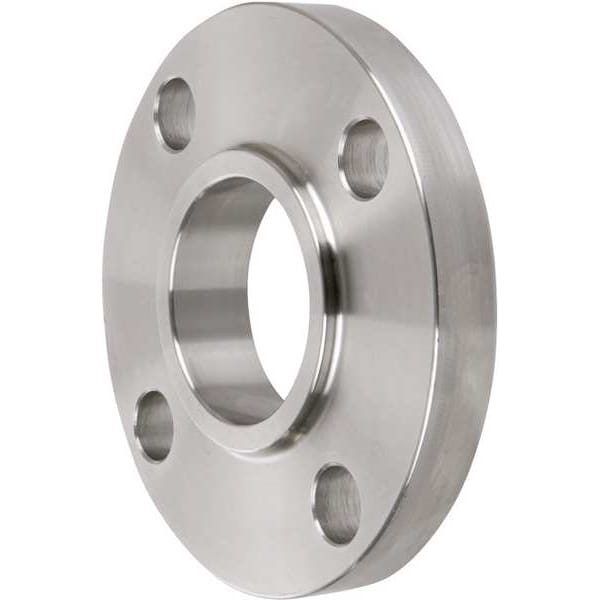

Manufacturer Varies 4" Welded SS Lap Joint Flange 4381000280

The ZORO SELECT - 4381000280 is a lap joint flange made of 304 stainless steel, designed to fit over a matching stub end welded to the pipe. This loose, flat ring allows the flange to rotate freely for easy bolt-hole alignment and assembly. It is suitable for stainless steel piping systems requiring frequent dismantling or alignment flexibility, where only the stub end contacts the fluid to provide controlled corrosion resistance. Conforms to industry standards for pressure ratings up to 150 psi, with a maximum rated pressure of 150 psi. It is rated for operation within the specified temperature range of -60°F to 450°F. Key Features: - Material: 304 Stainless Steel. - Item Type: Lap Joint Flange. - Connection: Welded fitting with a lap joint surface. - Nominal Pipe Size: 4 inches. - Flange Outside Diameter: 9 inches. - Number of Bolt Holes: 8. - Pressure Class: Class 150, rated for up to 150 psi maximum operating pressure. - Temperature Range: -60°F to 450°F. - Standards: ANSI B16.5 and ASTM A182 compliant.
