Ham-Let H-480OP-SS-N-1-4-10PSI

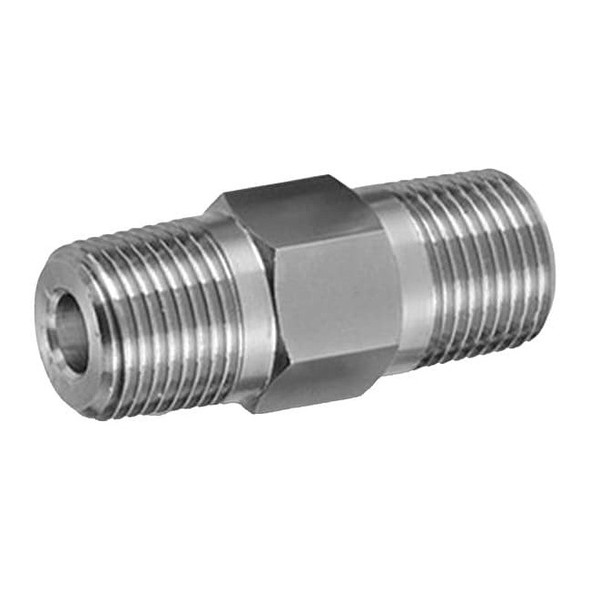

HAM-LET H-480OP-SS-N-1/4-10PSI is an instrumentation check valve designed for one-way flow control in small-bore process and instrument lines. This inline, 2-way valve uses a poppet check mechanism for directional flow control in systems using compatible chemicals, gas, oil, or water within the specified ratings. It features male 1/4 in. NPT connections on both ends and can be mounted horizontally or vertically. Key Features: 316 stainless steel body, check mechanism, and seat for the valve’s primary wetted components Inline spring design with poppet mechanism for one-way flow control 1/4 in. MNPT x MNPT connections for threaded installation Cracking pressure: 10 psi Flow coefficient (Cv): 0.35 Maximum operating pressure: 3,000 psi Operating temperature range: -10°F to 375°F Seal material: FKM Spring material: 302 stainless steel Overall length: 1.61 in.; hex size: 9/16 in. Valve series: H400 Standards: C.R.N 0C16552.2
