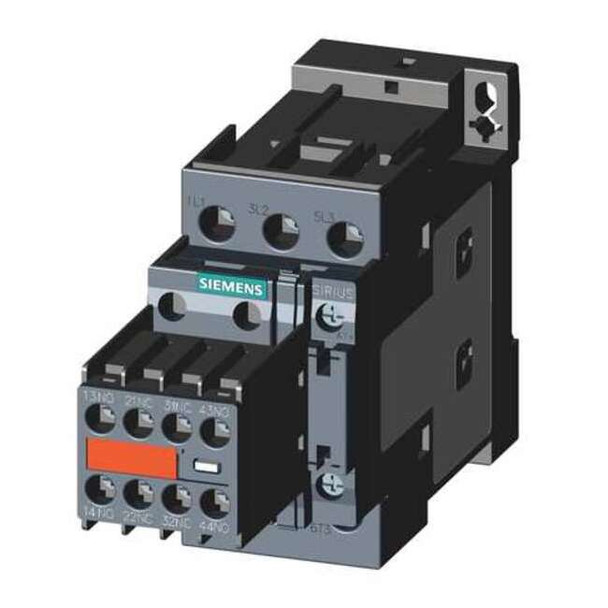

IEC Magnetic Contactor, 2NC-2NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20251AK643MA0

SIEMENS IEC Magnetic Contactor, 3-pole, non-reversing, coil voltage 110–120 V AC, is rated for operation within the specified voltage ranges and intended for controlling motors and industrial loads in accordance with applicable standards. It is designed for DIN Rail or surface mounting and is part of the SIRIUS 3RT Safety Contactors family (frame S0). - Action: Non-Reversing - Reversing: No - Poles: 3 - Main contacts: 3 - Auxiliary contacts: 4 total (2NO/2NC) - Auxiliary contact configuration: 2NO/2NC - Coil voltage: 110–120 V AC - Frequency: 50/60 Hz - Maximum voltage rating: 690 V AC - IP rating: IP20 - Mounting style/position: DIN Rail, Surface; Vertical - Terminal connection: Screws - Full load current: Rated for use at specified current levels under normal operating conditions. - Horsepower ratings: designed to operate within the specified voltage and power ratings listed. - Dimensions: Height 5.87 in; Width 2.13 in; Depth 3.82 in (overall depth 3.63 in) - Mounting details: Mounting holes Ø0.19 in; Hole spacing 2.36 in (height); 1.38 in (width) - Standards: REACH Art 33, WEEE (2012/19/EU)
