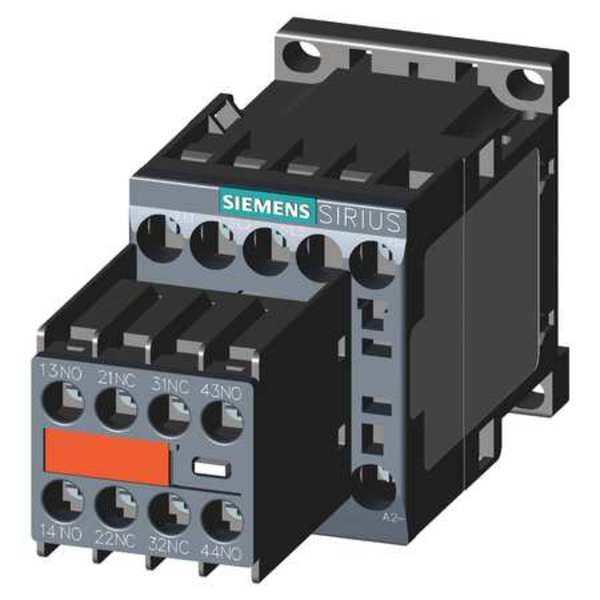

IEC Magnetic Contactor, 2NC-2NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20171AK643MA0

The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a 3-pole, non-reversing contactor in the SIRIUS 3RT Safety Contactors series, with a 110–120 V AC coil and 2NO/2NC auxiliary contacts. The device is suitable for use in control panel applications conforming to industry standards and uses screw terminals for connections. Designed for DIN Rail or surface mounting; rated for voltages up to 690 V AC; IP20 protection rating. - Coil voltage: 110–120 V AC - Action: Non-Reversing - Poles: 3 - Phase: Three - Frequency: 50/60 Hz - Main contacts: 3 NO - Auxiliary contacts: 4 total (2NO/2NC); includes permanent mounted aux contact - Reversing: No - Frame/Series: Frame Size S00; Series SIRIUS 3RT Safety Contactors - Enclosure/IP: No Enclosure; IP20 - Mounting: DIN Rail, Surface; Terminal connection: Screw - Maximum voltage rating: 690 V AC - Full Load Amps: Inductive 12 A; Resistive 22 A - Power: 6 kW (AC-3) at 400 V; 13 kW (AC-1) at 400 V - Mechanical durability: 30,000,000 cycles - Operating temperature: -13°F to 140°F - Dimensions (approx.): 2.4 in W × 1.95 in H × 5.0 in D - Standards: REACH Art 33, WEEE (2012/19/EU)
