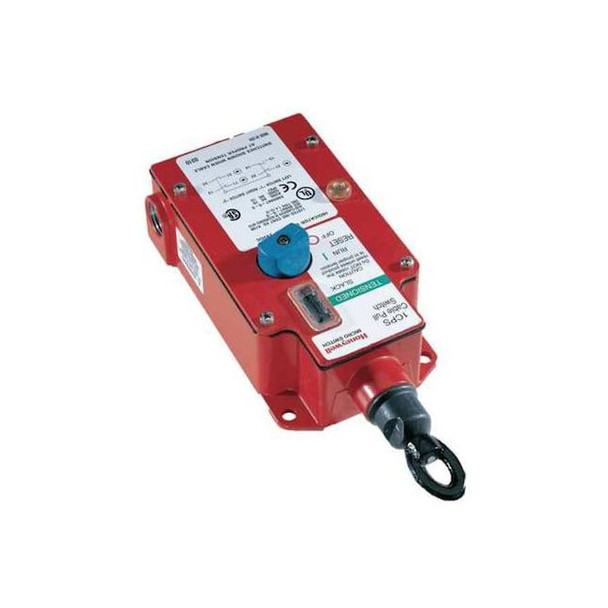

Cable-Pull Safety Switch – 1CPS Series, Emergency Stop, 2NO-2NC, 250 ft Span 1CPSA2A

Honeywell's 1CPS Series Cable Pull Safety Switch is a single-head, emergency cable pull switch intended for use as a stop signal in conveyor line or automated system applications. The internal mechanism latches when the actuating cable is either pulled or slackened, and a rotary knob reset returns the switch to operation after actuation. A tension window with a midpoint line aids in proper setup, while direct opening contacts change state upon cable activation. This model features both Normally Open (NO) and Normally Closed (NC) contacts for signaling and monitoring functions. Key Features: - Contact Configuration: 2NO/2NC direct opening silver alloy contacts - Electrical Ratings: 10A @ 600V AC; 2.5A @ 24V DC; minimum current of 50mA - Maximum Cable Span: Up to 250 ft (76 m) - Enclosure Material & Rating: Die cast zinc case, red finish; NEMA Types 1, 4, 12, and 13 (IP67) - Indicator: Integrated LED light for status indication at 24V DC - Mounting Style: Single end with left or right cable connection location - Reset Mechanism: Manual rotary knob reset - Operating Temperature Range: -40°F to +176°F (-40°C to +85°C) - Mechanical life tested to one million operations under specified conditions
