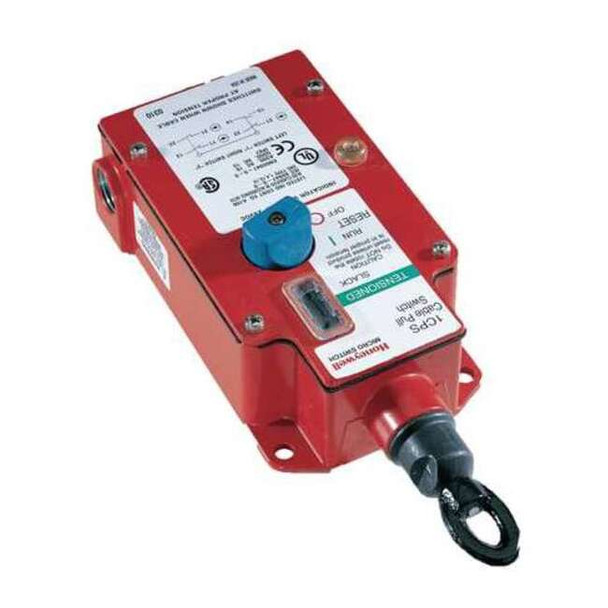

Cable-Pull Safety Switch - 1CPS, Emergency Stop, 250 ft Span, IP67 1CPSA1A

Honeywell's 1CPS Series Emergency Cable Pull Switch is a single-ended, maintained-action device intended for use as an emergency stop signaling device along cable spans up to 250 ft. The switch features a zinc die cast case and utilizes direct opening contacts that change state when the actuating cable is pulled, slackened, or broken. A rotary knob reset mechanism allows manual reset of the switch following actuation. The unit includes a 24V DC LED indicator for visual status and supports left or right cable connection. Key Features: - Contact Rating: 10A @ 600V AC; 2.5A @ 24V DC - Contact Form: 1 Normally Open (NO) / 1 Normally Closed (NC), silver alloy contacts - Maximum Cable Span: 250 ft - Case Material: Zinc die cast with IP67 protection; NEMA ratings: 1, 12, 13, and 4 - Operating Temperature Range: -40°F to +176°F - Mounting Style: Single end; wiring entry via 1/2 in NPT - Reset Mechanism: Rotary knob; pull force of up to 40 lb required for actuation - Indicator Light: Integrated LED at 24V DC - Dimensions: Length – 10.62 in; Width – 3.9 in; Depth – 2.57 in - Standards Compliance: CE, CSA, UL Listed
