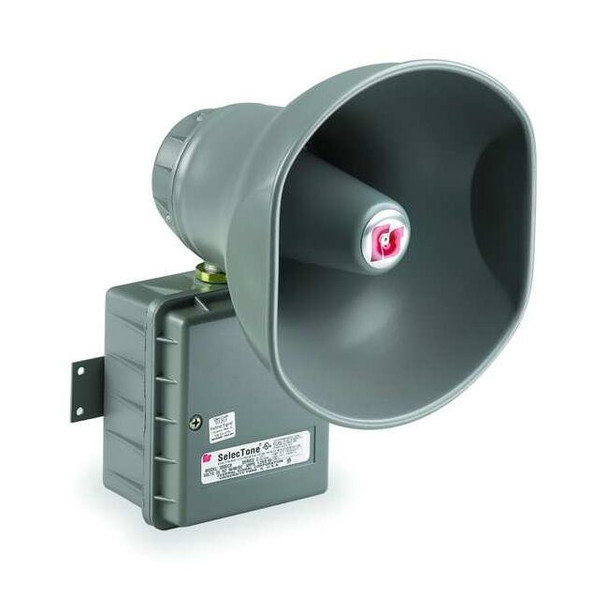

Federal Signal 300GCX-024

FEDERAL SIGNAL 300GCX-024 is a surface-mount signaling horn with a continuous sound pattern and 24V DC operation. It provides audible warning output from 0 to 110 dB and is housed in gray die-cast aluminum with an indoor/outdoor location rating. The unit is rated for hazardous locations including Class I, Division 2 and Class II, Division 2 for facility and worksite signaling applications that use an audible alert. Key Features: Audible alarm type: Horn with continuous sound pattern Voltage: 24V DC; power voltage: 24V AC/DC; amps: 0.67 AC Sound output: 0 to 110 dB Housing material: Die-cast aluminum; color: Gray Mounting style: Surface mount Location rating: Indoor/Outdoor Hazardous location rating: Class I, Division 2; Class II, Division 2 Ingress and enclosure ratings: IP66, IP69K, NEMA 4X Operating temperature: -65 degrees to 150 degrees F Driver configuration: 1-way; dispersion: 60-degree conical Overall size: 12 1/2 in H x 8 in W x 8 1/2 in D Standards: CSFM, cUL Listed, UL Listed
