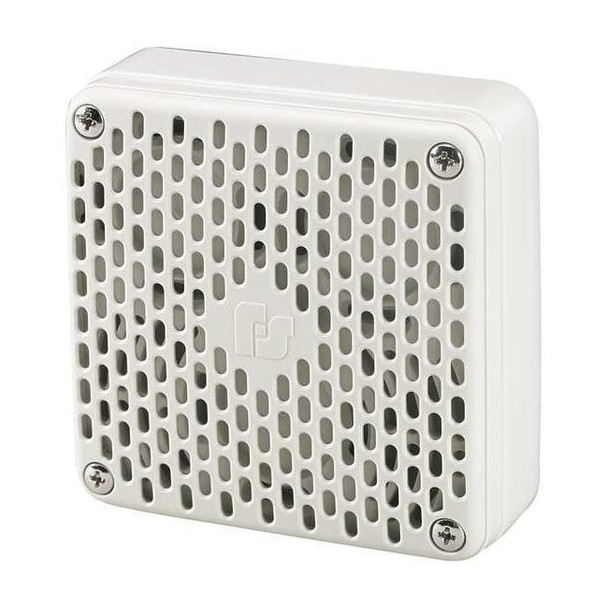

Federal Signal 450E-024

FEDERAL SIGNAL 4.50E-22 is a surface-mount audible horn for signaling applications in locations consistent with the product’s listed enclosure ratings. It produces a continuous horn sound and supports coded or sustained tones. The unit operates on 12 to 24V DC and 16 to 33V DC, with a wired power source and terminal block connection. Its gray polycarbonate housing is designed for surface installation and includes mounting hardware and a panel mount gasket. Key Features: Audible horn with no visual indicator. 90 dB nominal sound output, with maximum sound levels of 108 dBA at 1 m and 98 dBA at 10 ft. Continuous horn sound with coded or sustained tone operation. 12 to 24V DC and 16 to 33V DC operating voltage range. 0.25 A current draw and 5 W wattage. Gray polycarbonate housing. Surface-mount design with mounting hardware included. Terminal block connection. IP66 and NEMA 4X enclosure ratings. Operating temperature range: -65 degrees F to 150 degrees F. Includes multiple CSFM, cUL, UL, ULC, and marine ratings. Panel mount gasket included.
