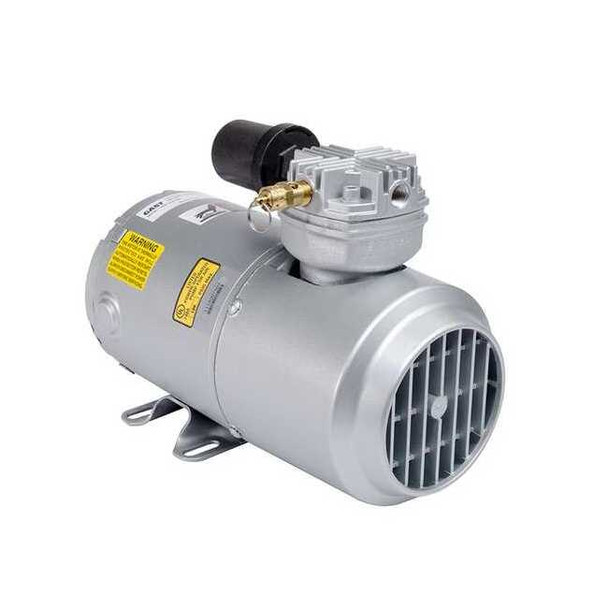

Gast Piston Air Compressor,Size 1-4",1725 RPM 2HAH-10-M200X

The Gast 2HAH-10-M200X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.72 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 6.95 A, and a measured sound level of 72 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 12.913 x 5.669 x 8.385 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
