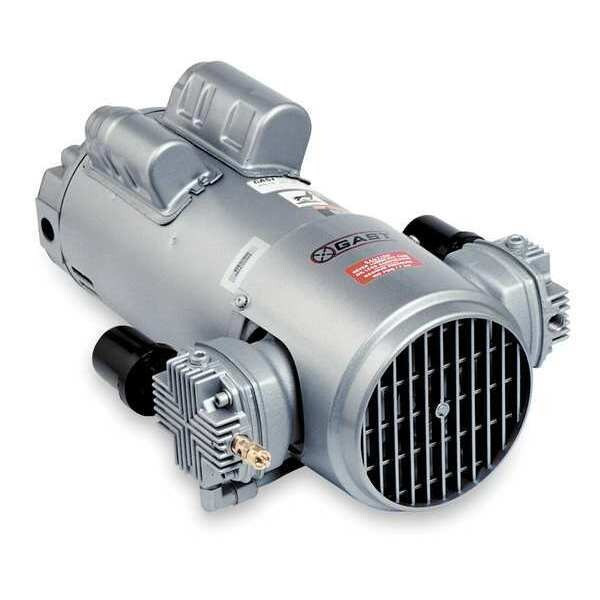

Gast Piston Air Compressor, 1HP, 115-230V, 1Ph 6HCA-12-M616NEX

The Gast 6HCA-12-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 3.2 CFM at 100 psi up to 5.35 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 14.8/7.4 A, and a measured sound level of 63 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a shaded-pole motor, and sandwich valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.625 x 12.25 x 8.937 in (L x W x H). Duty cycle: continuous. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, and photographic processing.
