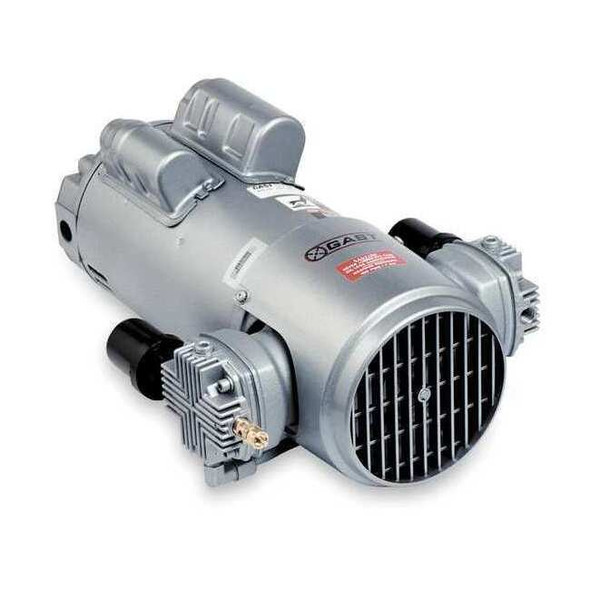

Gast Piston Air Compressor, 1HP, 115-230V, 1Ph 6LCF-246S-M616NEX

The Gast 6LCF-246S-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 6.3 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,750 RPM, a full-load current of 14.8/7.4 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 16.75 x 12.333 x 8.333 in (L x W x H).
